WHAT IS A KINGPIN ON A SEMI? ROLE IN SEMI-TRAILER CONNECTIONS

22 Apr, 2025

The kingpin is a critical element in semi-trailer connections, playing an essential role in maintaining stability and safety during transit. Understanding its function helps to appreciate the intricate engineering behind semi-truck operations. In this article, Thaco Trailers will help you to explore the significance of the kingpin and its impact on the overall performance of semi-trailer systems.

What is a kingpin on a semi?

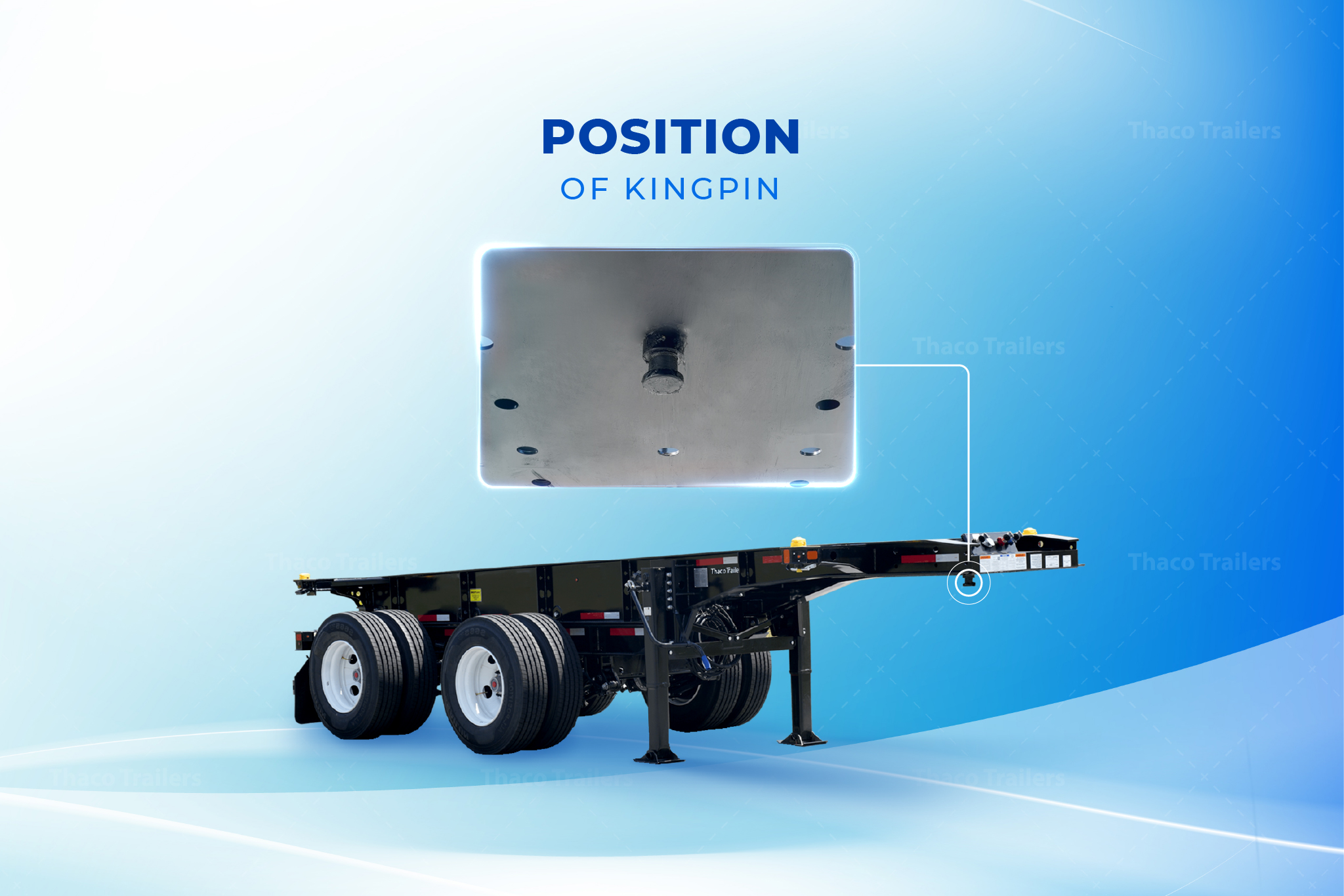

The kingpin is often considered as the critical pivot point connecting a semi-tractor to a semi-trailer. This crucial component is intended to provide stability and smooth movement of the trailer when the vehicle makes twists and maneuvers. Kingpins are often made of hardened steel and fulfill certain industry requirements, such as the SAE J700 specification.

what is a kingpin on a semi 1

>> Read more: What is Container Chassis? Learn about Types and Uses – Thaco Trailers

How does a kingpin work on semi?

The kingpin is integral to how a semi-truck operates, and its functions can be broken down as follows:

Locking Mechanism: The kingpin connects with the fifth wheel’s locking mechanism, securing it in place. Once the kingpin is secured, this device keeps the semi-trailer securely linked to the tractor, preventing disengagement during transportation.

Pivot Point for Steering: The kingpin is the center pivot point, allowing the semi-trailer to rotate horizontally on its fifth wheel. This movement is critical for allowing the tractor and semi-trailer to make smooth turns even in confined situations.

Weight Distribution: The kingpin also plays a key role in transferring the semi-trailer’s load to the tractor through the fifth wheel, ensuring balanced weight distribution between the axles. This is vital for maintaining stability and safety while towing.

>> Read more: How to choose the right fifth wheel coupling for your trailer

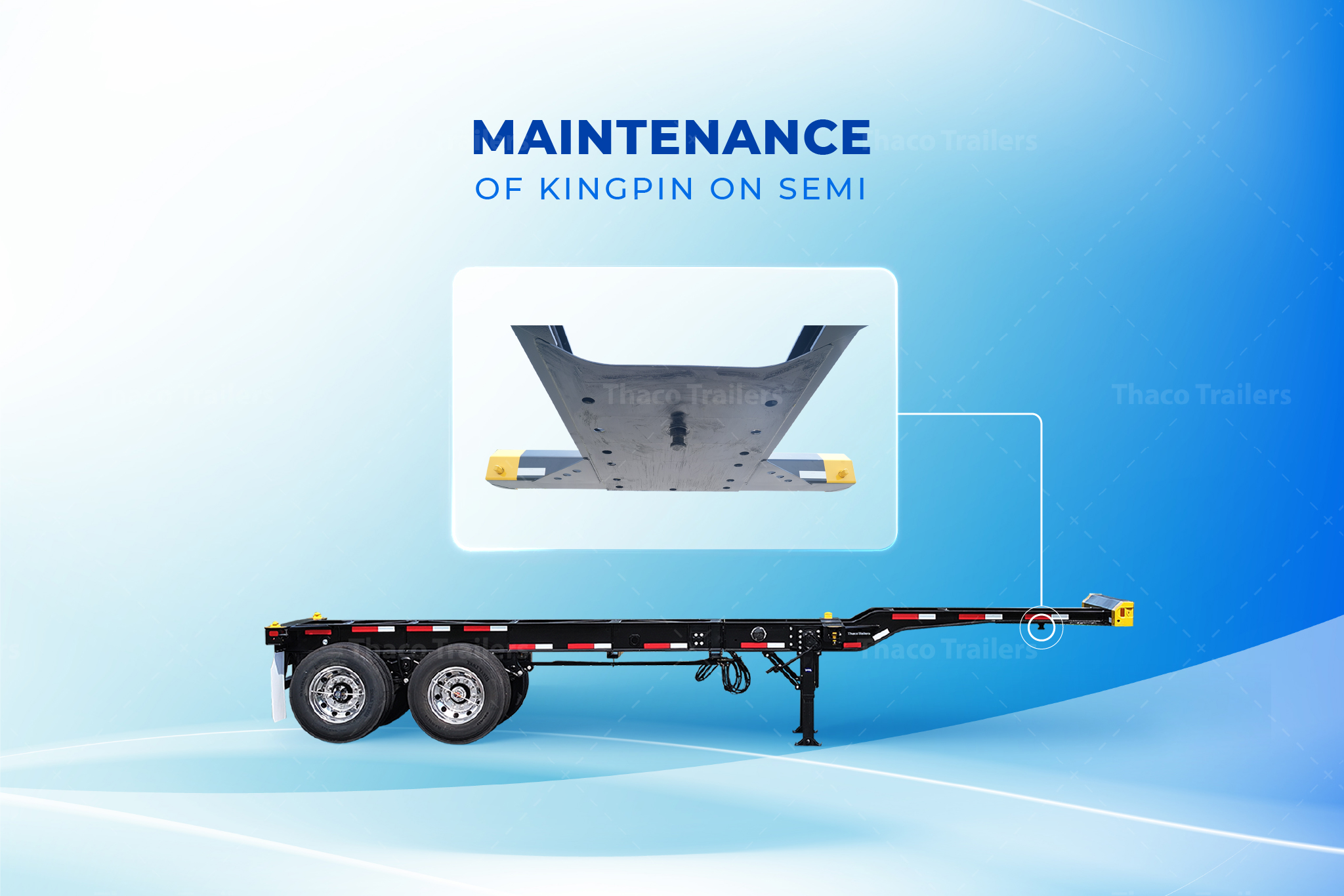

Maintenance of kingpin on semi

The kingpin must be maintained in order for a semi-truck to operate safely and efficiently. The trailer’s upper coupler and kingpin should be inspected and maintained on a regular basis in the same way that the fifth wheel is. To guarantee effective and safe kingpin/fifth wheel connection, the following operations should be conducted every three months or every 30,000 miles, as recommended in SAE J2228.

what is a kingpin on a semi 2

Upper Coupler Plate Flatness: Using a 48-inch straight edge, check the flatness of the upper coupler plate in all directions. Any bumps, valleys, or warping can lead to uneven loading of the fifth wheel, which may damage the top plate and negatively affect lock life.

Inspect the Kingpin for Straightness: Utilizing a square or a Holland Kingpin Gauge (TF-0110) check to see if the kingpin is bent. A bent kingpin accelerates lock wear and may hinder proper fifth wheel locking, potentially indicating damage. If the kingpin exceeds 1° from square in any direction, it should be replaced.

Inspect the Kingpin for Proper Length: Using a Holland Kingpin Gauge, verify the length of the kingpin. If the appropriate diameter easily enters the gauge slot, it indicates wear of 1/8˝ (0.13˝). Replace the kingpin if it slides into the appropriate gauge slot.

Check the Kingpin Mounting: Ensure that the kingpin is securely mounted, as a loose mounting can be a safety hazard and cause excessive chucking and rapid lock wear. Reinstall or replace any kingpin that is not securely mounted to maintain safety and performance.

Thaco Trailers owns a diverse supplier network, ensuring full adaptability to customers’ design requirements

Thaco Trailers boasts a diverse supplier network that enhances its ability to adapt to customers’ unique design requirements. By sourcing high-quality materials and components, including precision-engineered kingpins that ensure secure and stable connections between tractors and trailers, Thaco Trailers meets a wide range of specifications for durability and performance. Collaborating with trusted suppliers allows for flexibility in design, ensuring that each trailer is built to meet specific operational demands. This commitment to quality and innovation reinforces Thaco Trailers’ position as Vietnam’s leading semi-trailer manufacturer and supplier.

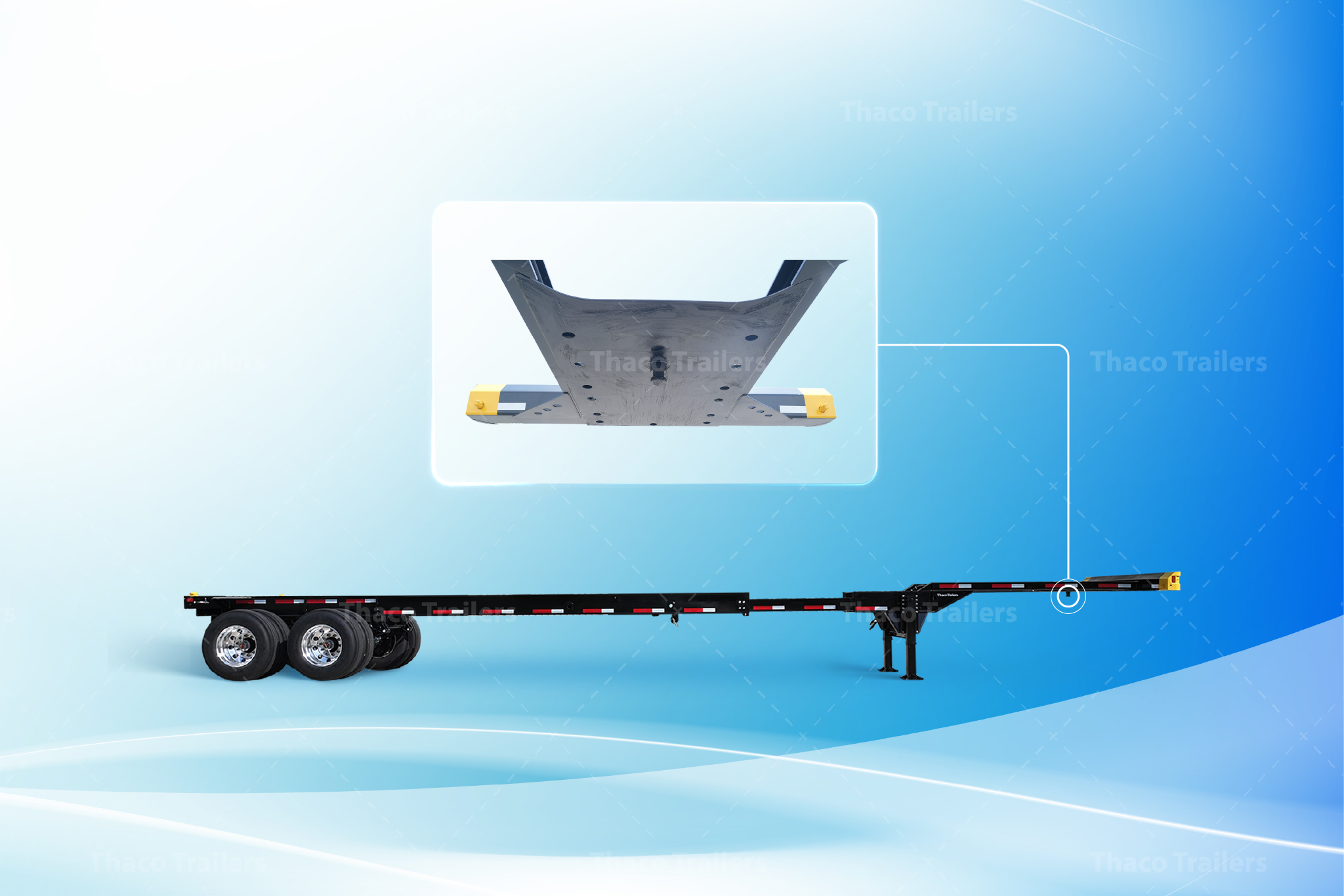

what is a kingpin on a semi 4
