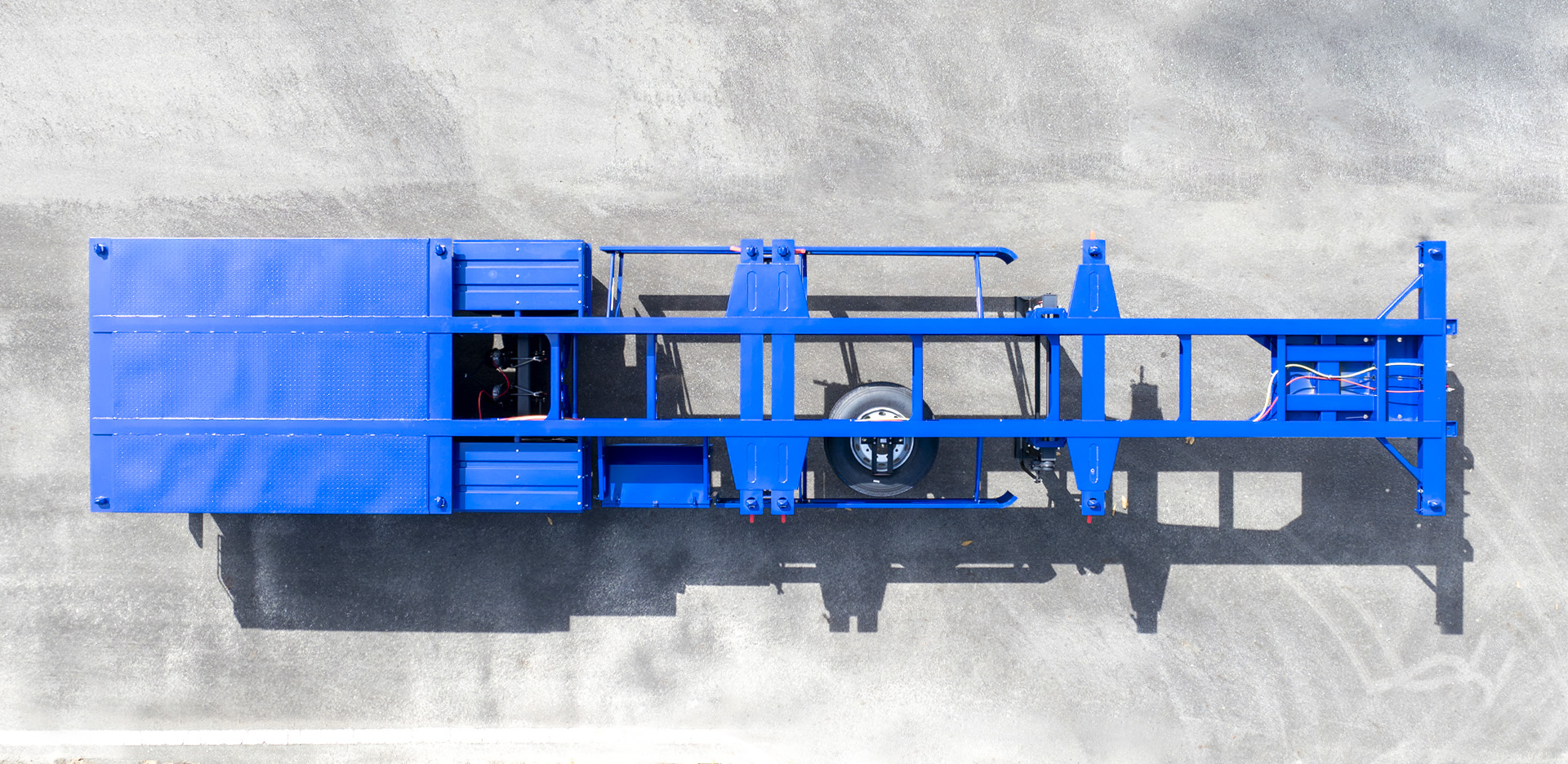

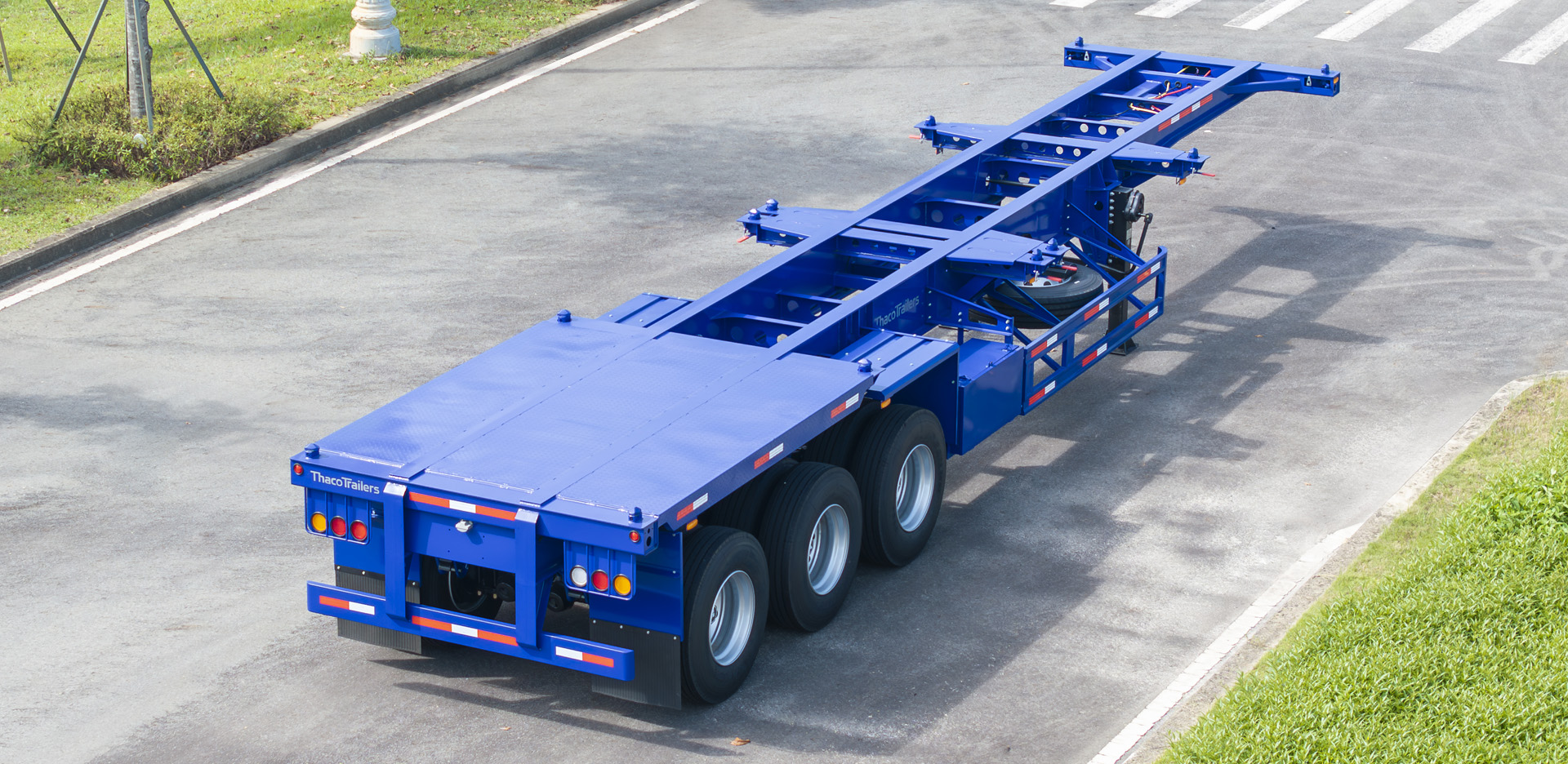

40′ Skeleton Tridem 12 Twist Locks
Overall Dimension (mm): 12,220 x 2,480 x 1,570
Wheelbase (mm): 7,440 + 1,310 + 1,310
Kerb mass (kg): 5,980
Authorized payload (kg): 33,100
Authorized total mass (kg) 39.080
Color on request
-
Specifications
- Warranty Policy
| Overall Dimensions | 12,250 x 2,500 x 1,580 mm |
| Wheelbase | 7,470 + 1,310 + 1,310 mm |
| Tare Weight | 5,750 kg |
| Payload Capacity | 33,330 kg |
| Gross Vehicle Weight | 39,080 kg |
| Main Beam | Welded Beam 512/140 mm |

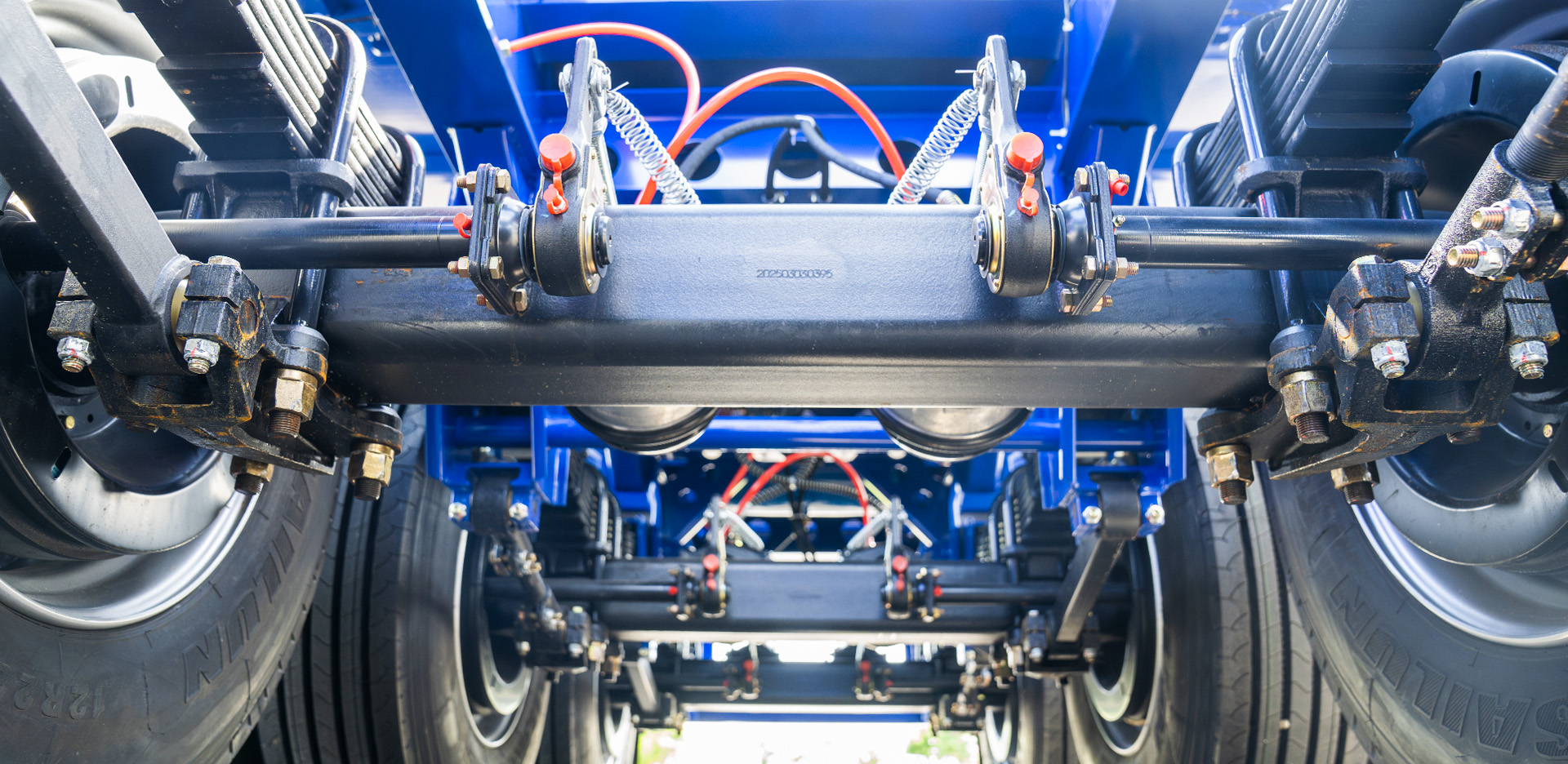

| Axle | Fuwa 13-ton |
| Kingpin | 2″ (ø50), Bolt Connection |

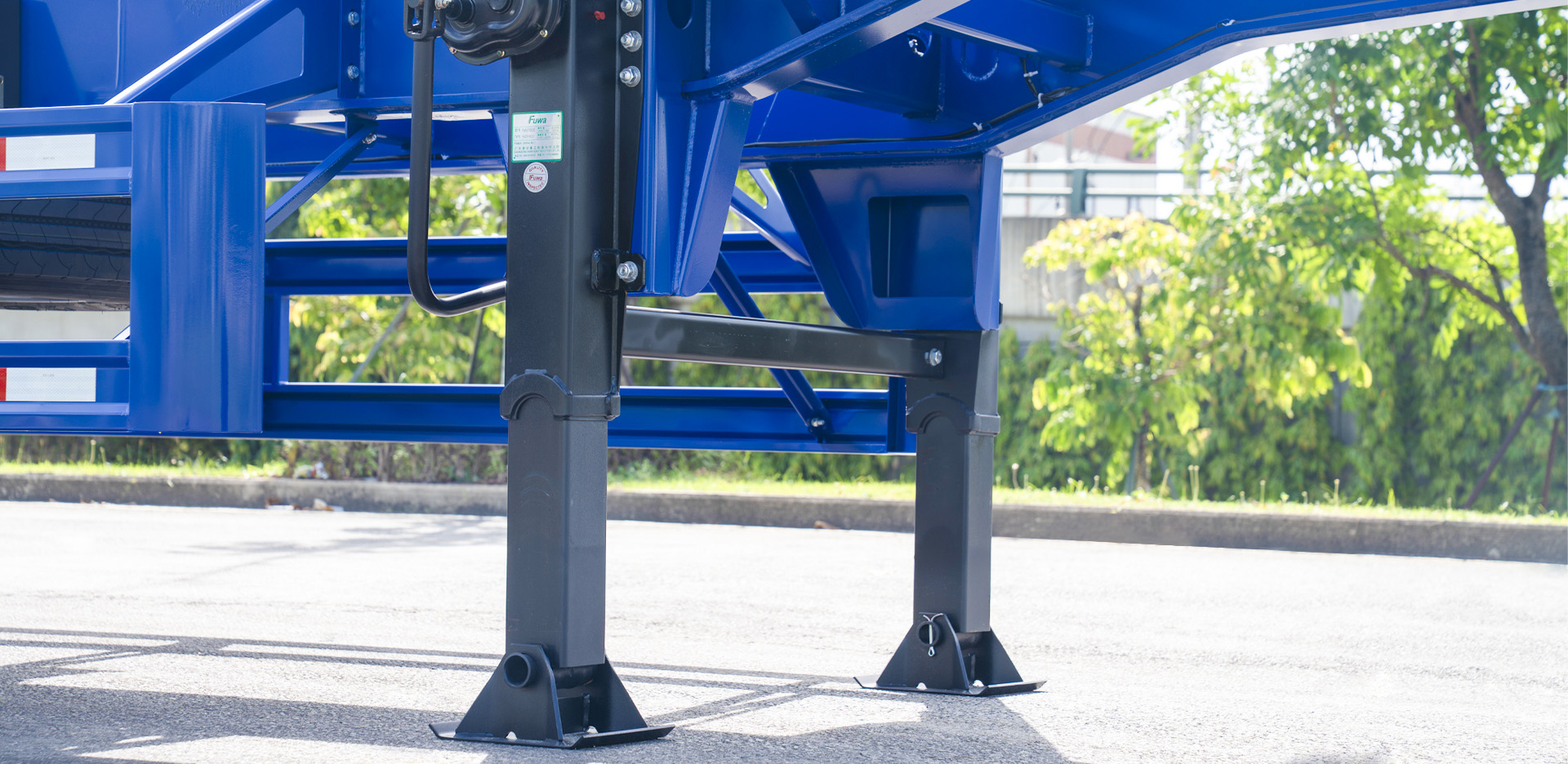

| Landing Gear | Fuwa 28-ton |

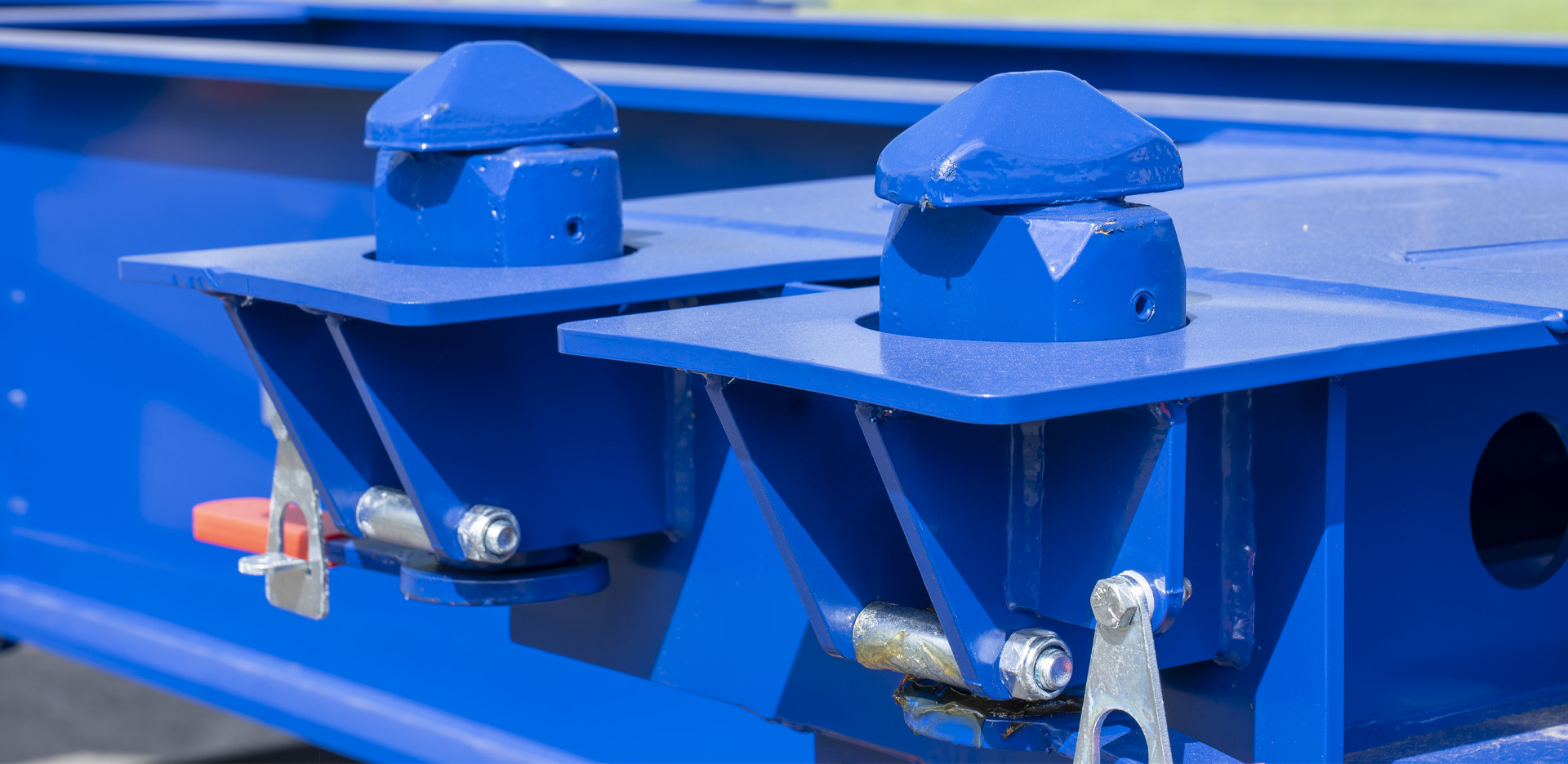

| Twist Locks | 8 pcs |

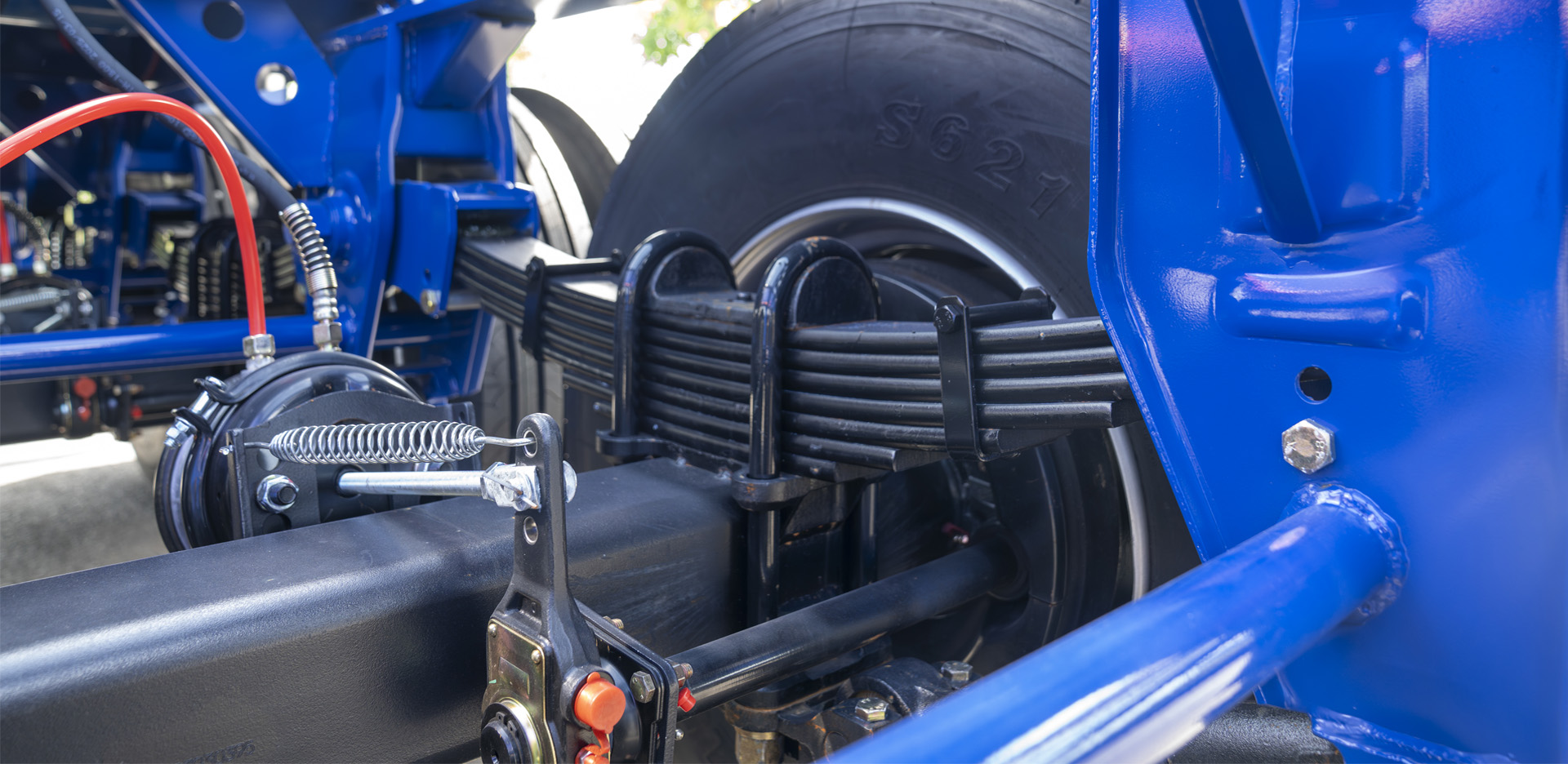

| Suspension | Leaf Spring, Fuwa Shock Absorber, 7-leaf Spring (90×16 mm) |
| Brake Valve | Wabco |

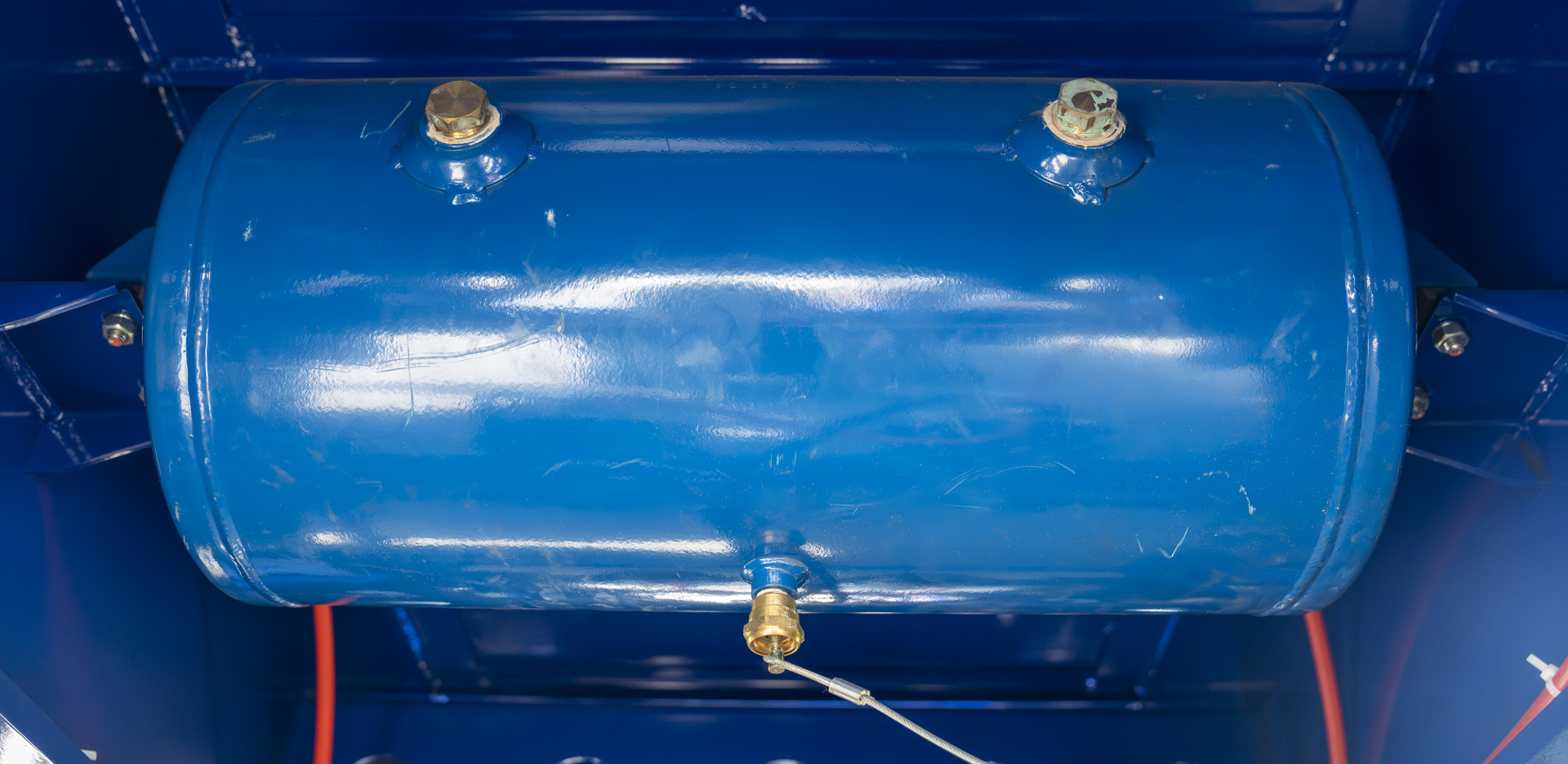

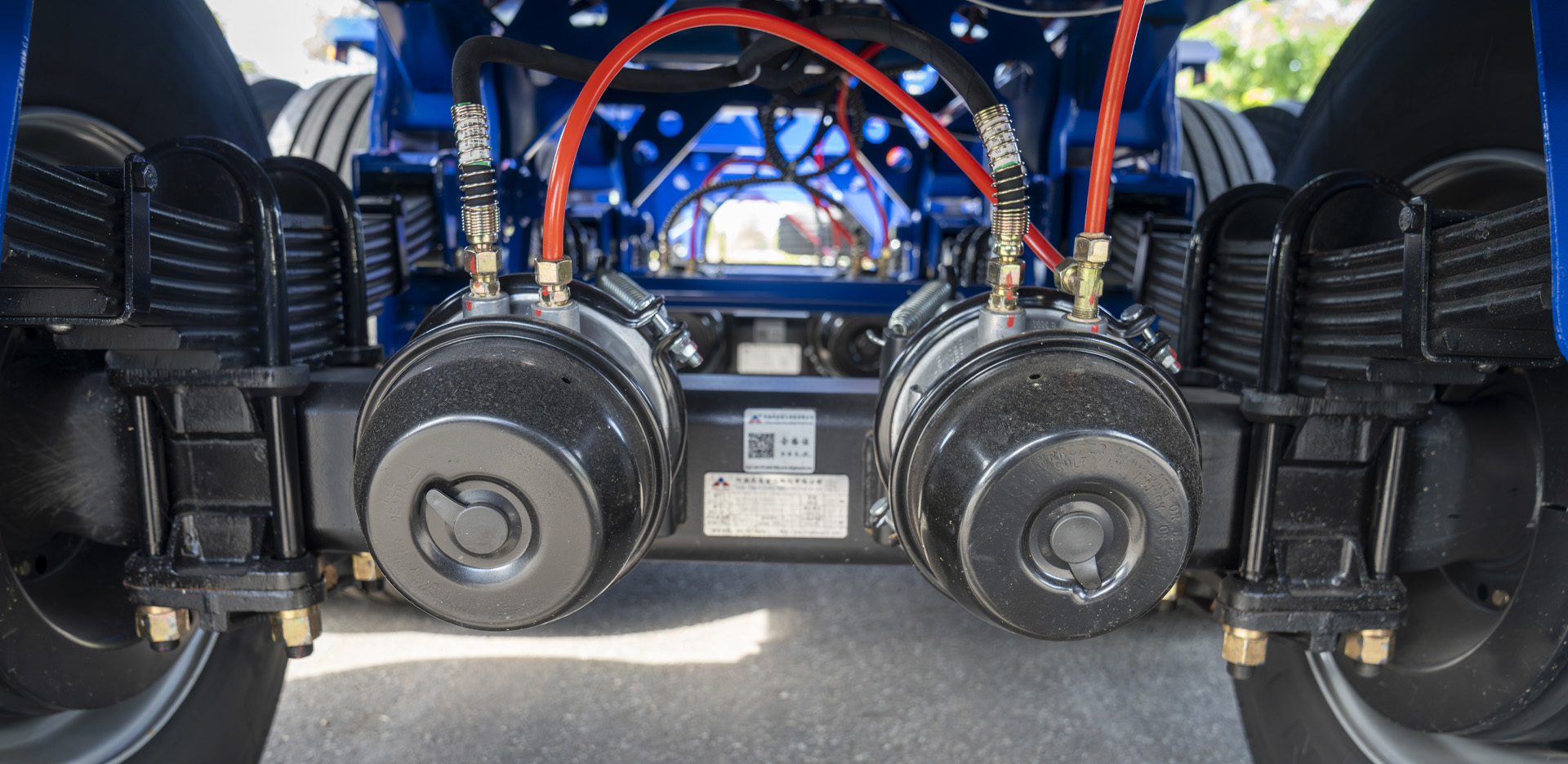

| Brake System | Locke 3-axle |

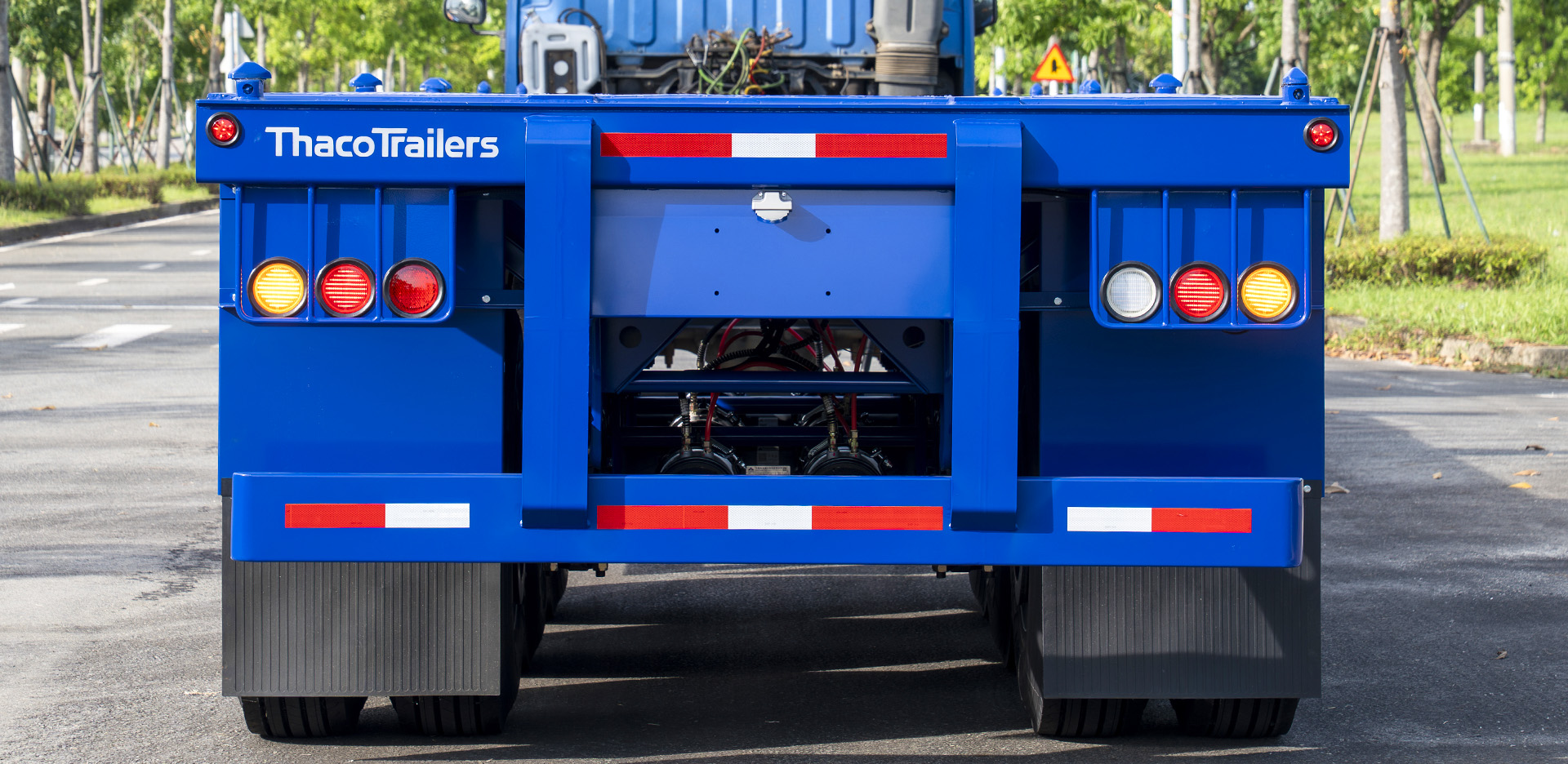

| Electrical System | 10–30V (compatible with all types of prime movers) |

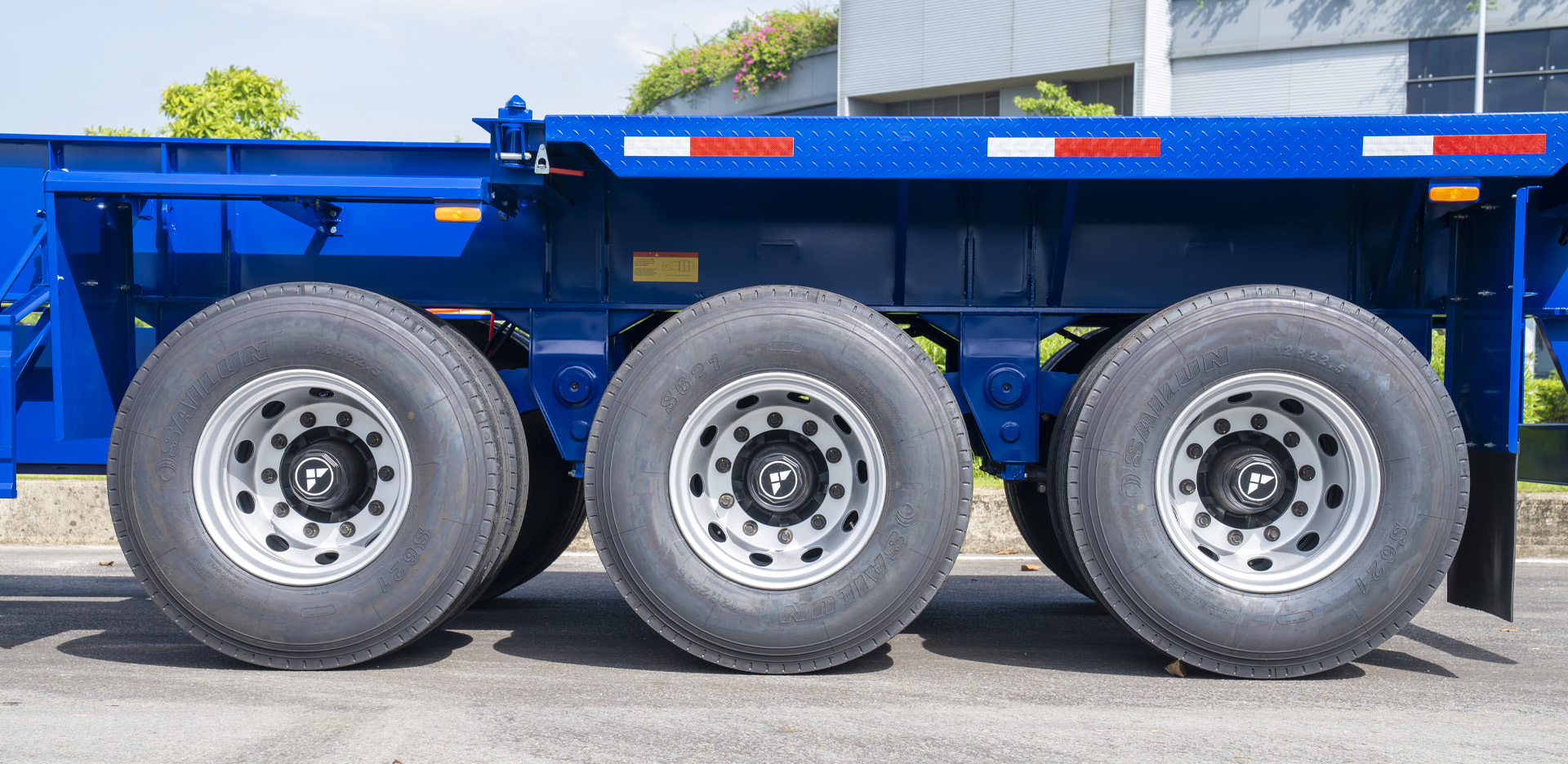

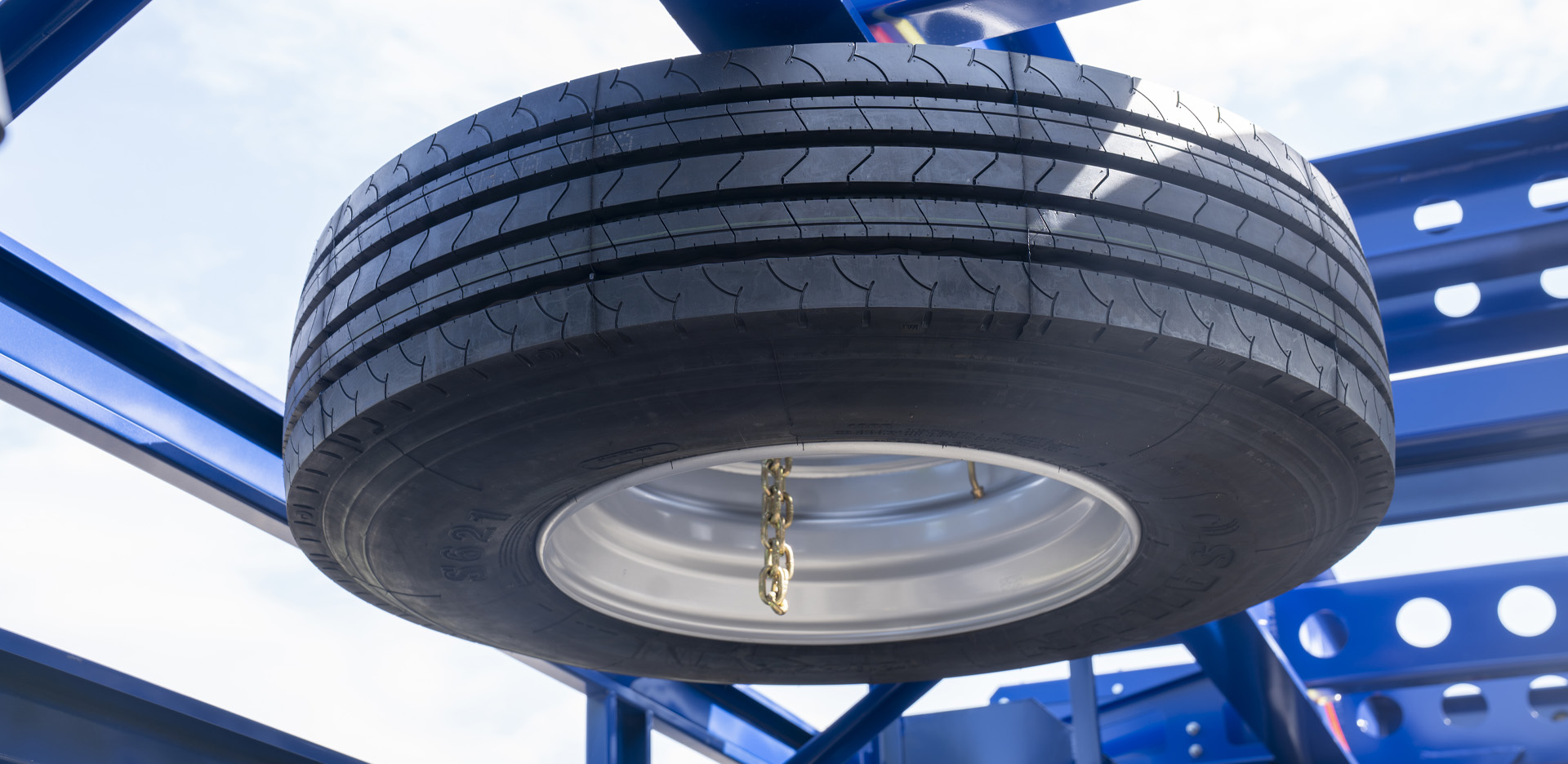

| Tire Size | 11R22.5 / 12R22.5 |
| Painting Technology | Surface Cleaning by Shot Blasting SA 2.5, Powder Coating, Finish Paint |
| Color (upon request) | Blue (standard color) |
| No. | Part Name | Manufacturers Name | Time | Warranty Information |
| 1 | Frame | Thaco Trailers | 5 Years | THACO INDUSTRIES TRAILERS AND HEAVY STEEL STRUCTURES MANUFACTURING LIMITED LIABILITY COMPANY Add: Chu Lai IZ., Nui Thanh Commune, Da Nang City, Vietnam Office: (+84) 2353.565.327 Website: https://thacotrailers.com/ |
| 2 | Paint(ED + Top coat) | PPG | Painting: 7 Years |
