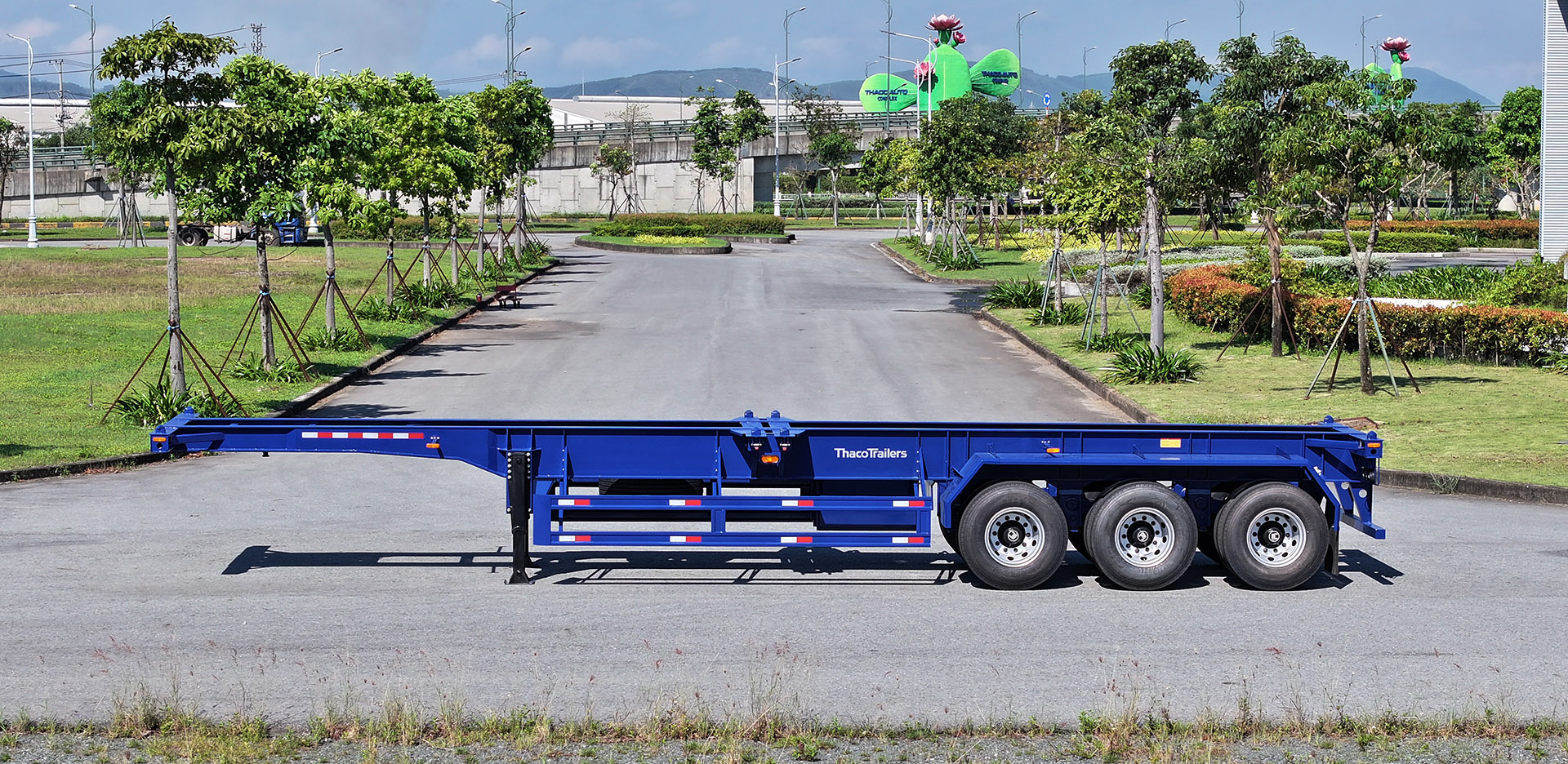

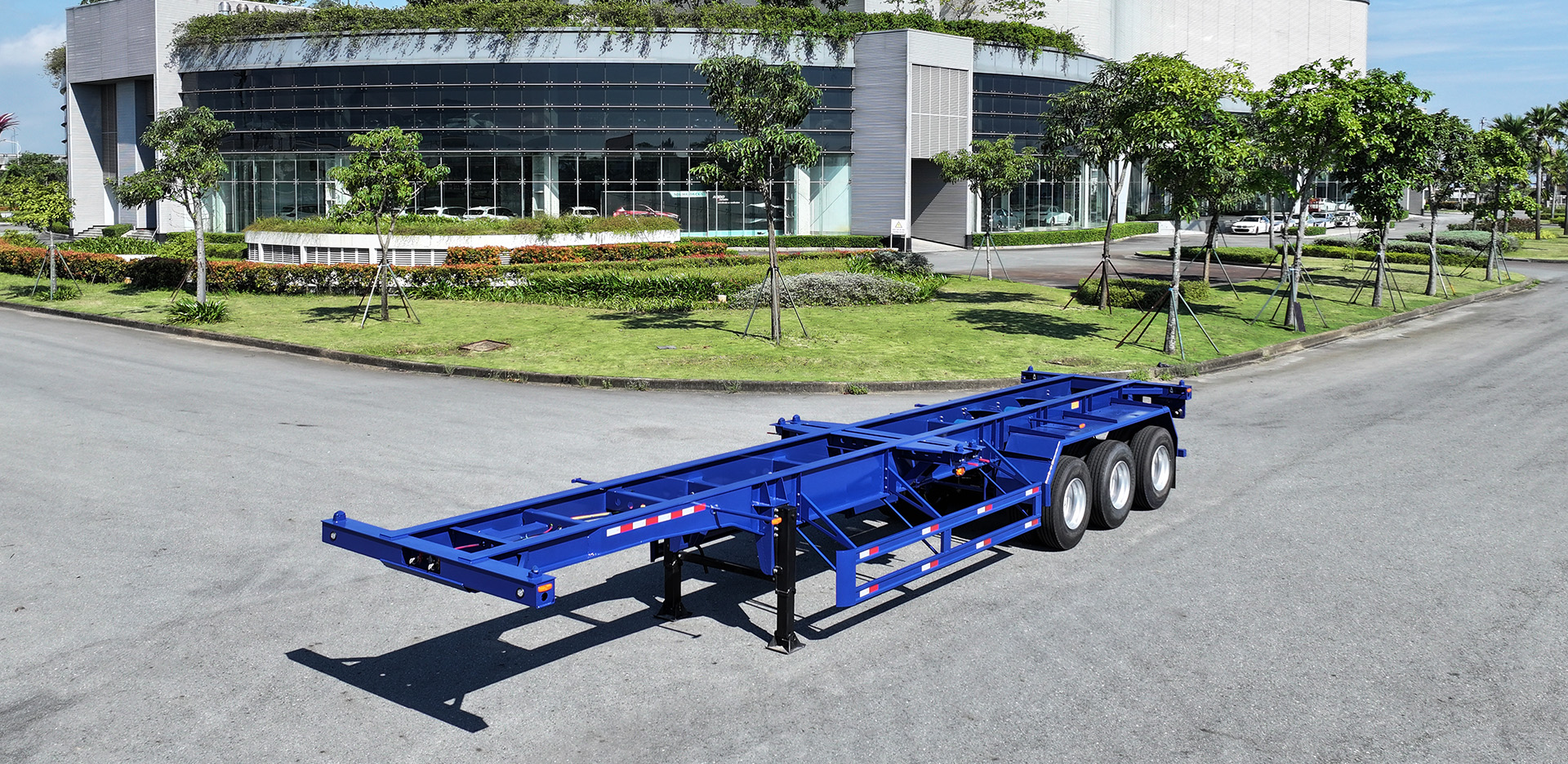

40’ Skeletal Tridem, 8 Twist Locks (Jingsheng)
Sturdy chassis, capable of transporting 20ft and 40ft containers. Equipped with 8 flexible twist locks for secure container placement, optimizing axle load.
Color on request
Specifications
Warranty Policy
| Overall Dimensions | 12.250 x 2.470 x 1.580 mm |
| Wheelbase | 7.480 + 1.310 + 1.310 mm |
| Tare Weight | 5.700 kg |
| Maximum Payload / Permissible Payload | 34.300 / 33.380 kg |
| Maximum Gross Weight / Permissible Gross Weight | 40.000 / 39.080 kg |

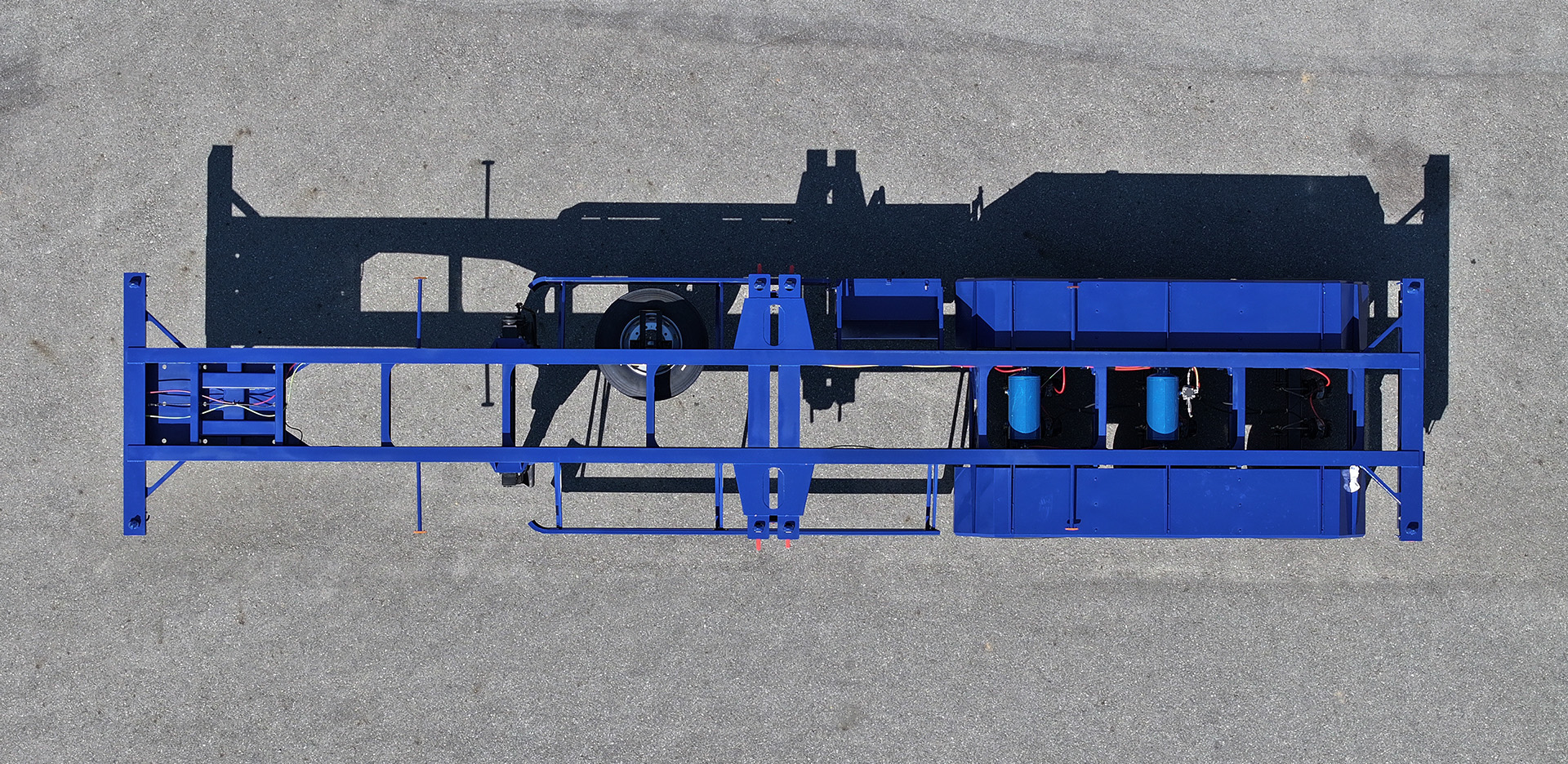

| Main Beam | Welded Beam 512/140 |

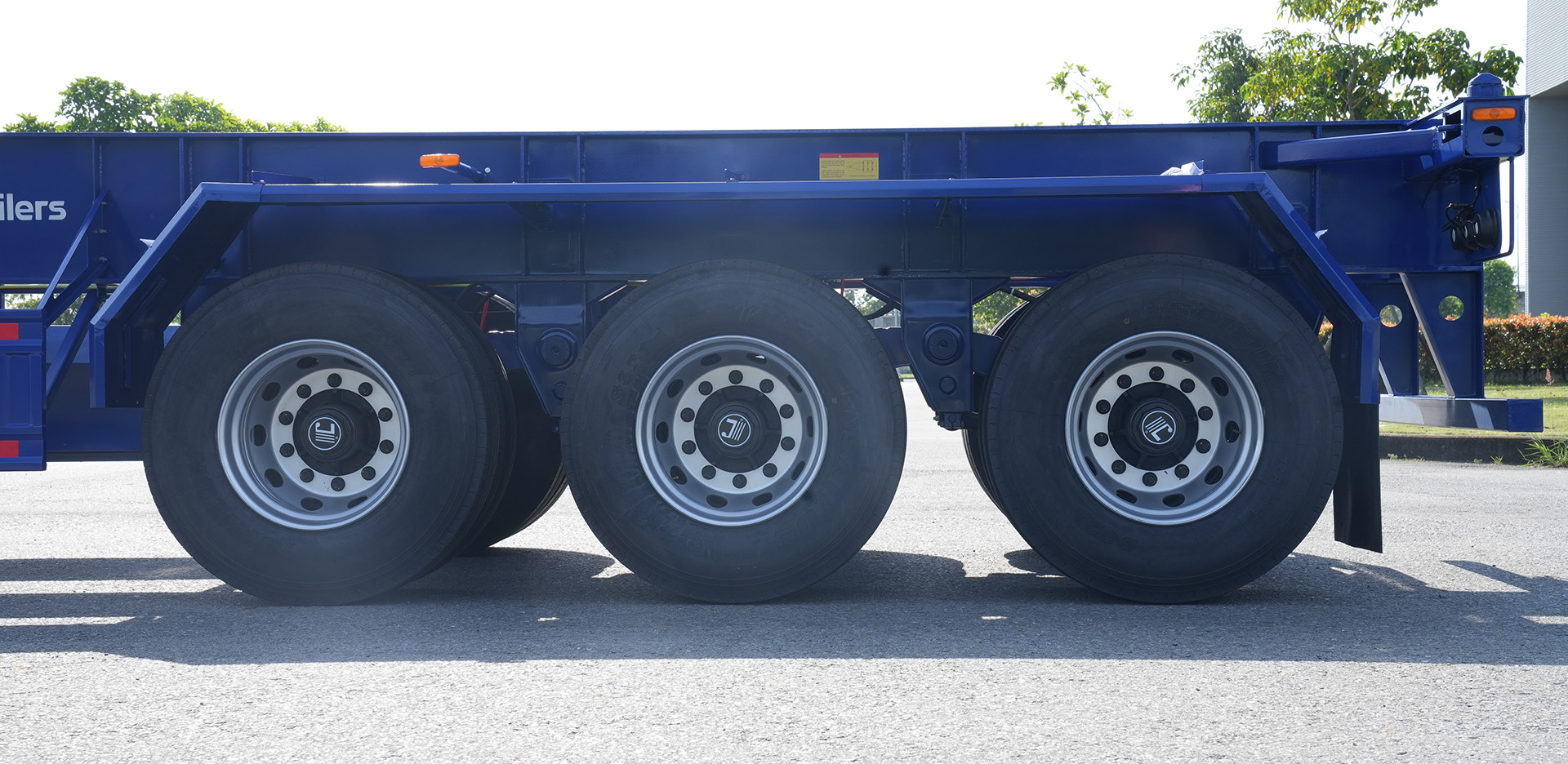

| Axle | Jingsheng 13-ton |
| Kingpin | 2” (ø50), Bolt Connection |

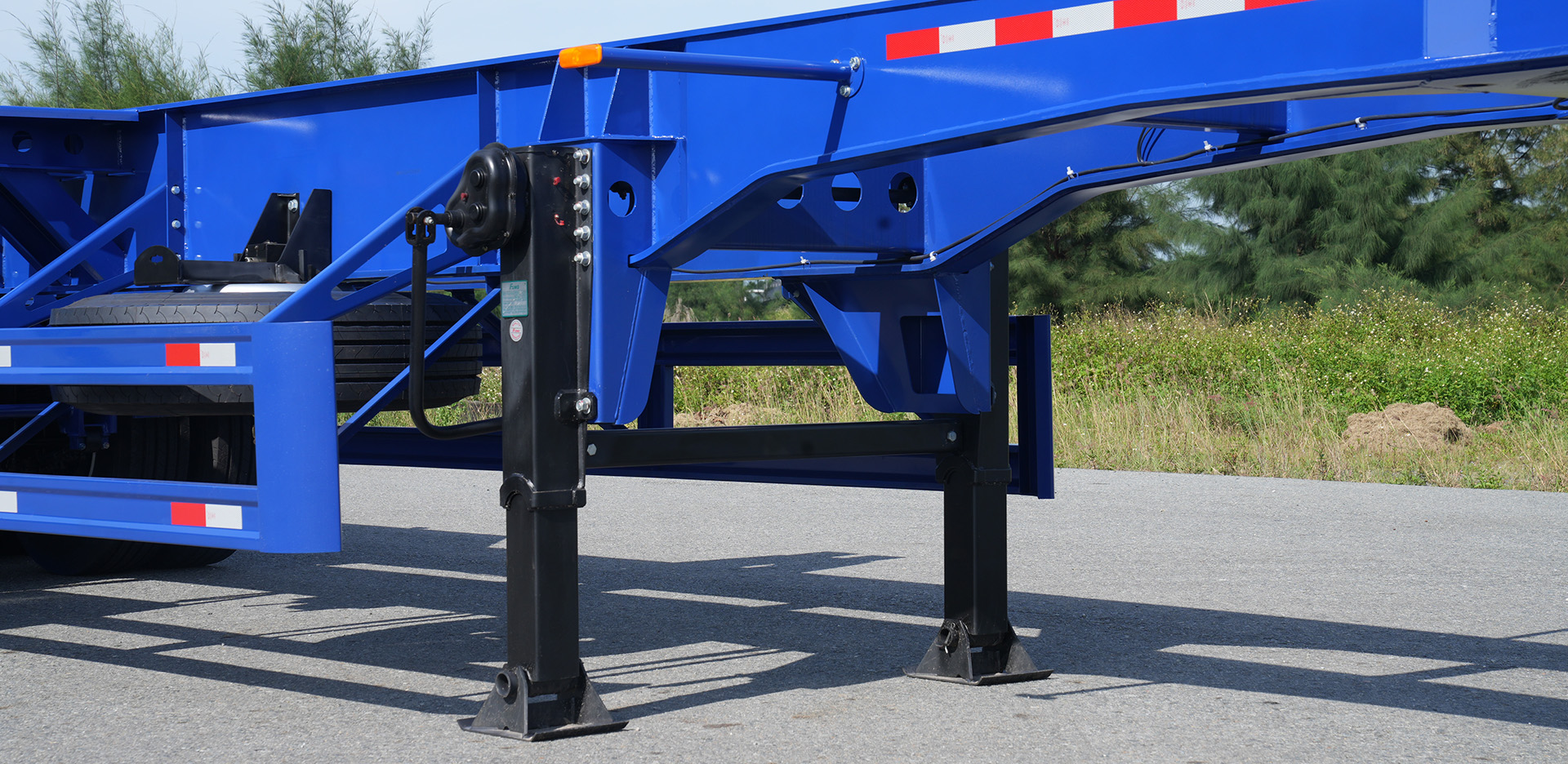

| Landing Gear | Leaf Spring, Jingsheng Shock Absorber, 4-leaf Spring (90×13 mm) |
| Twist Locks | 8 |

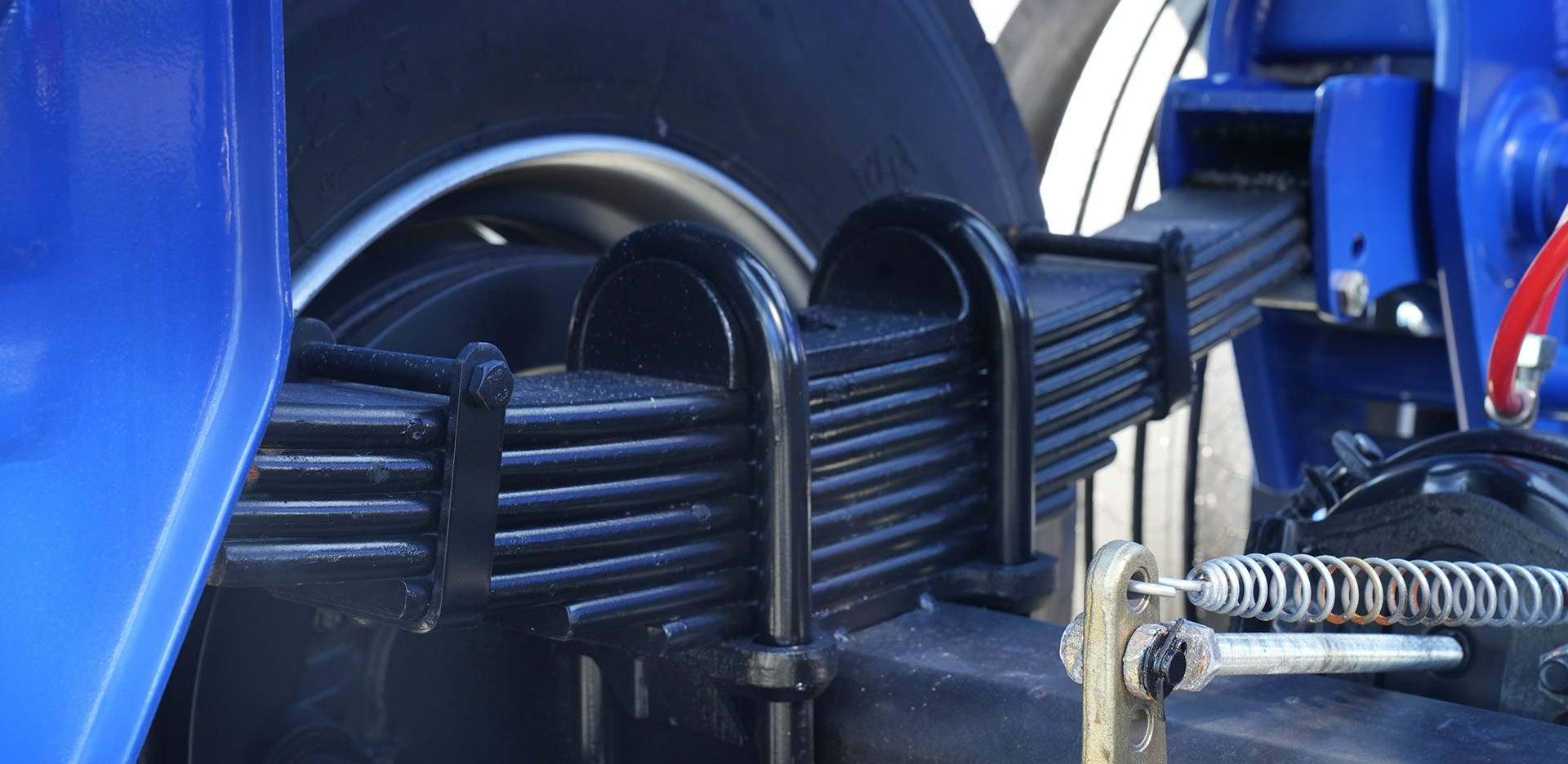

| Suspension | Leaf Spring, Jingsheng Absorber, 7-leaf Spring (90×16 mm) |

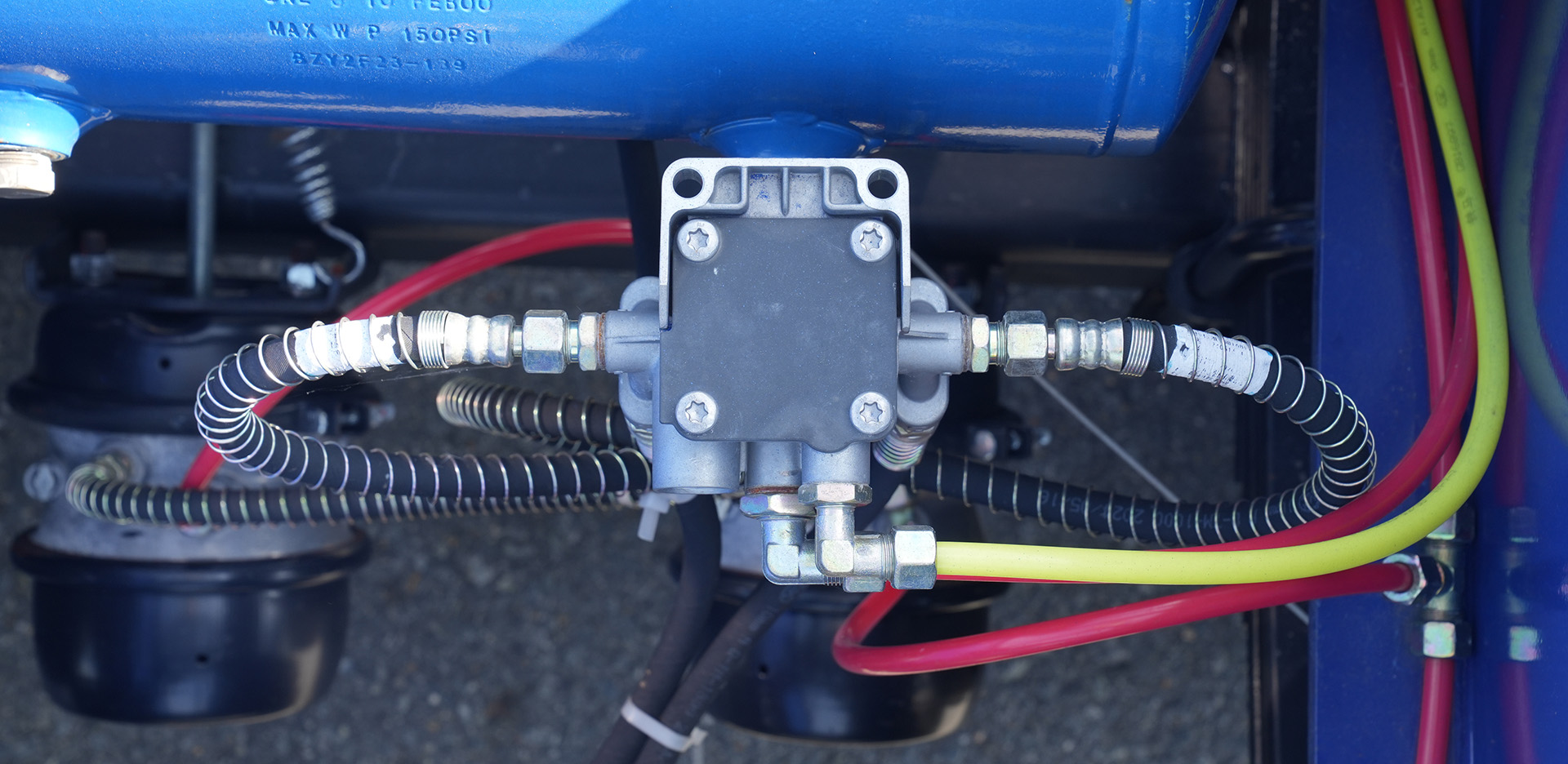

| Brake Valve | Wabco |

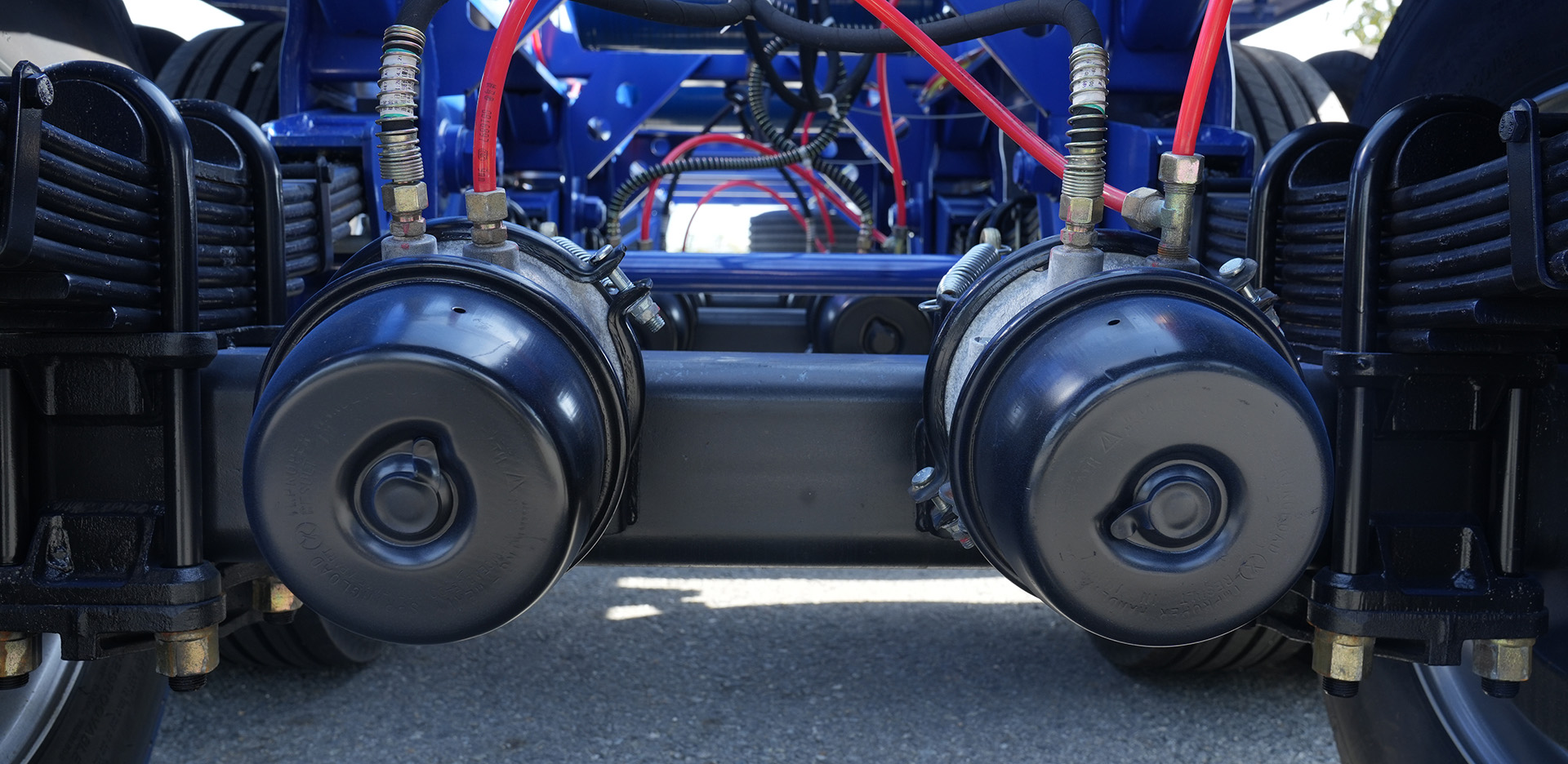

| Brake System | Locke 3-axle |

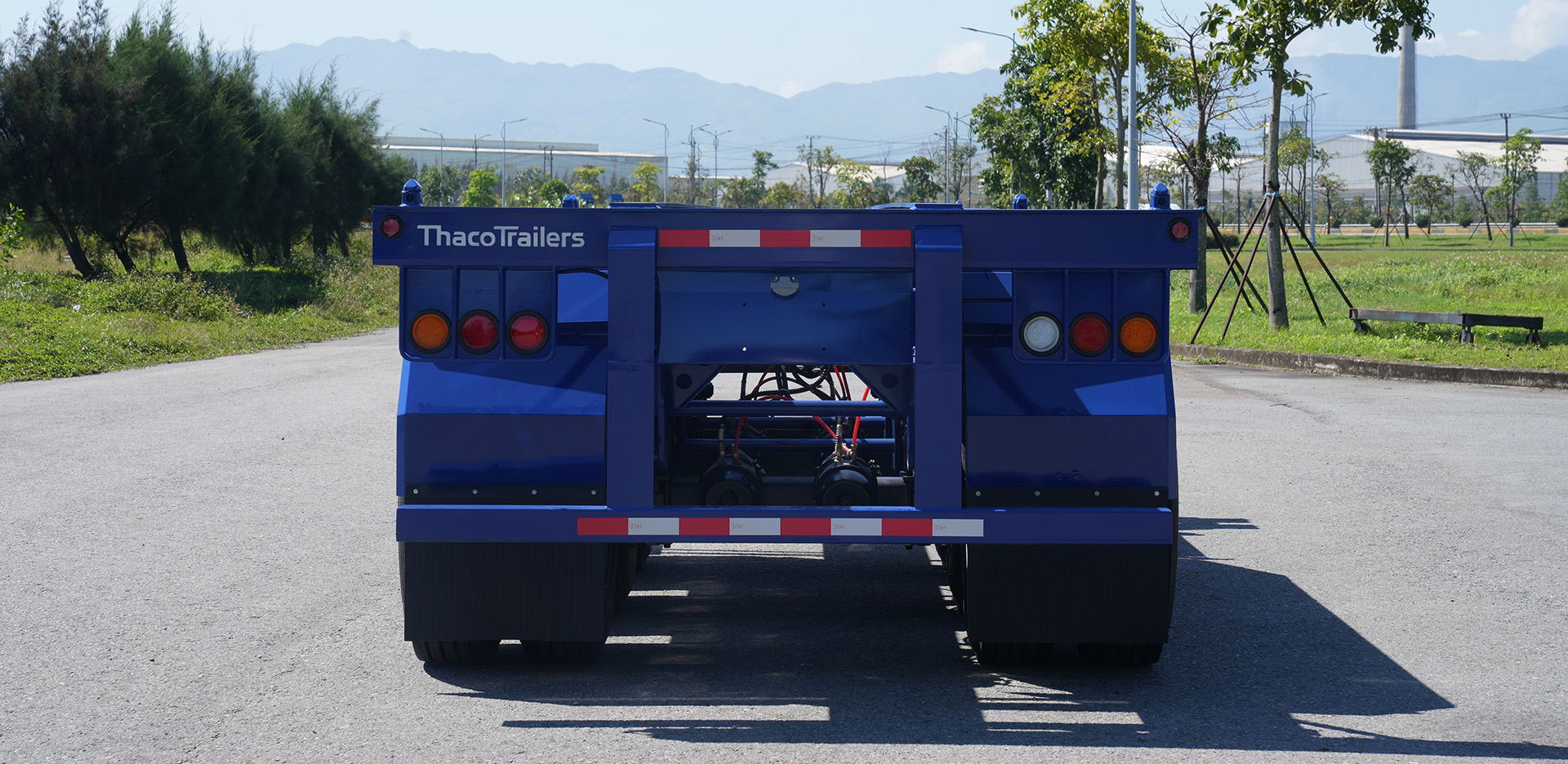

| Electrical System | 10-30V (compatible with all types of tractors) |
| Tire Size | 11R22.5 |
| Painting Technology |
|
| No. | Part Name | Manufacturers Name | Time | Warranty Information |
| 1 | Frame | Thaco Trailers | 5 Years | THACO INDUSTRIES TRAILERS AND HEAVY STEEL STRUCTURES MANUFACTURING LIMITED LIABILITY COMPANY Add : Chu Lai IZ., Nui Thanh Town, Quang Nam province, Vietnam Office: (+84) 2353.565.327 Website: https://thacotrailers.com/ |
| 2 | Paint(ED + Top coat) | PPG | Painting: 7 Years |
