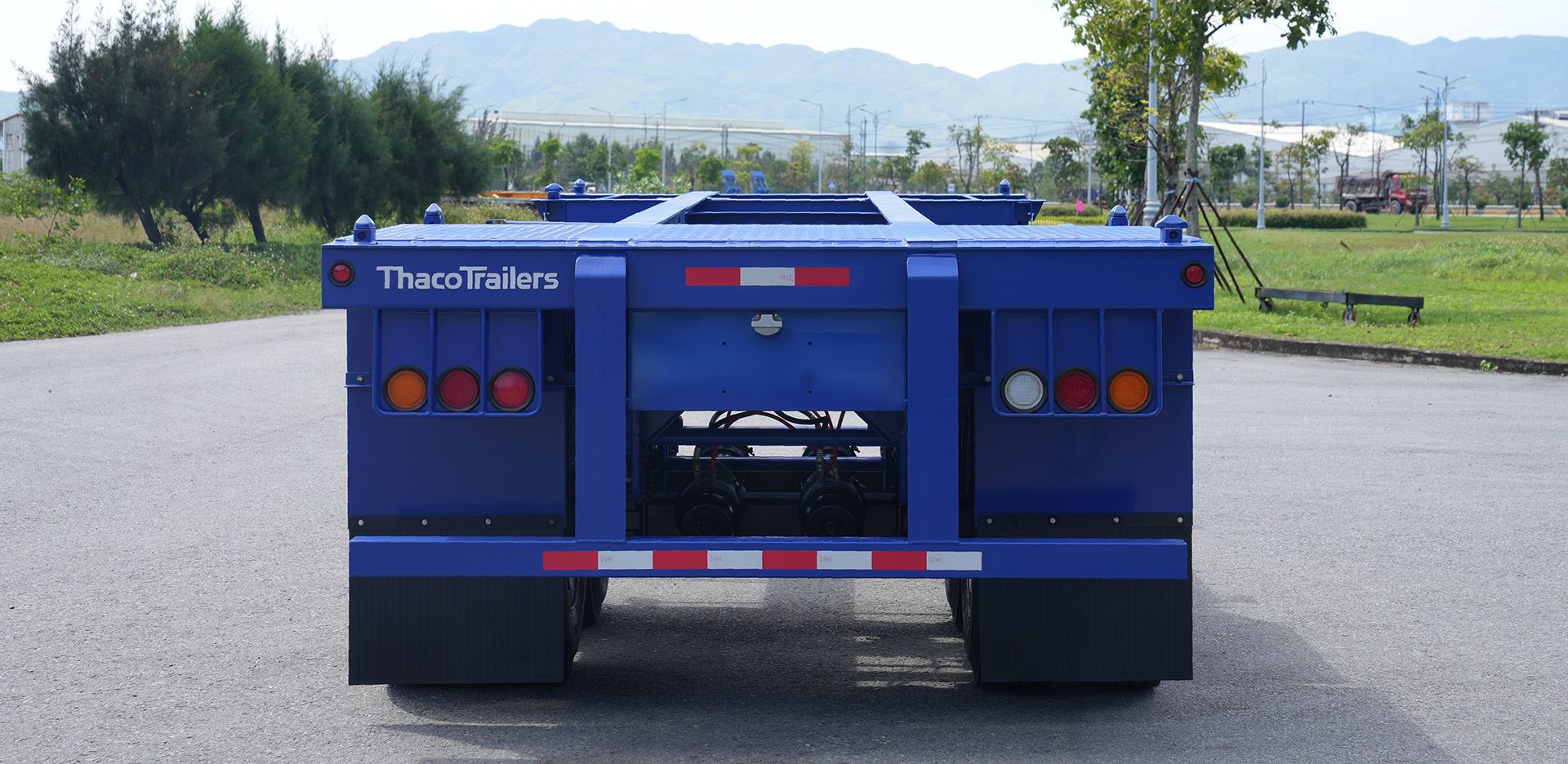

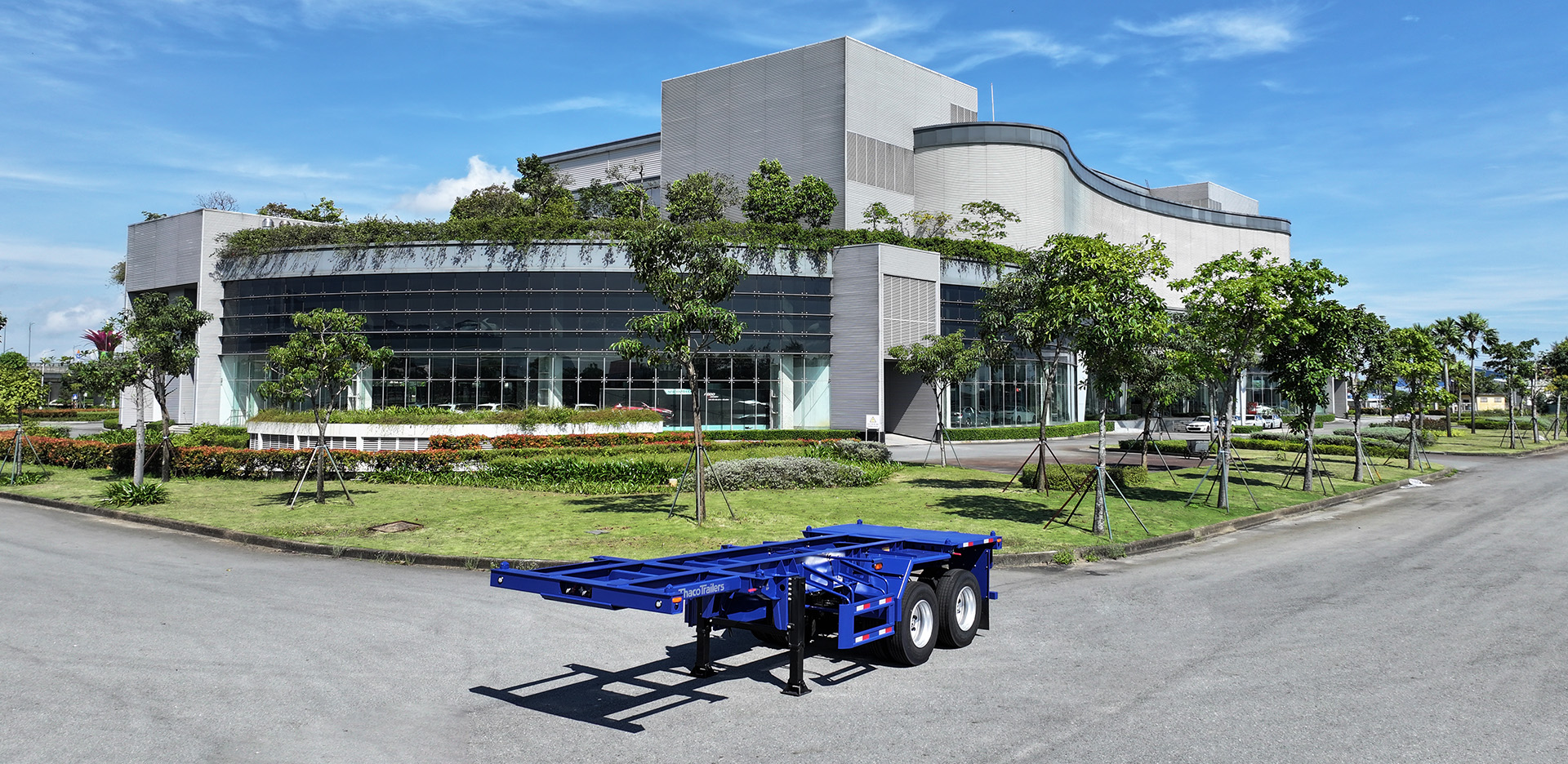

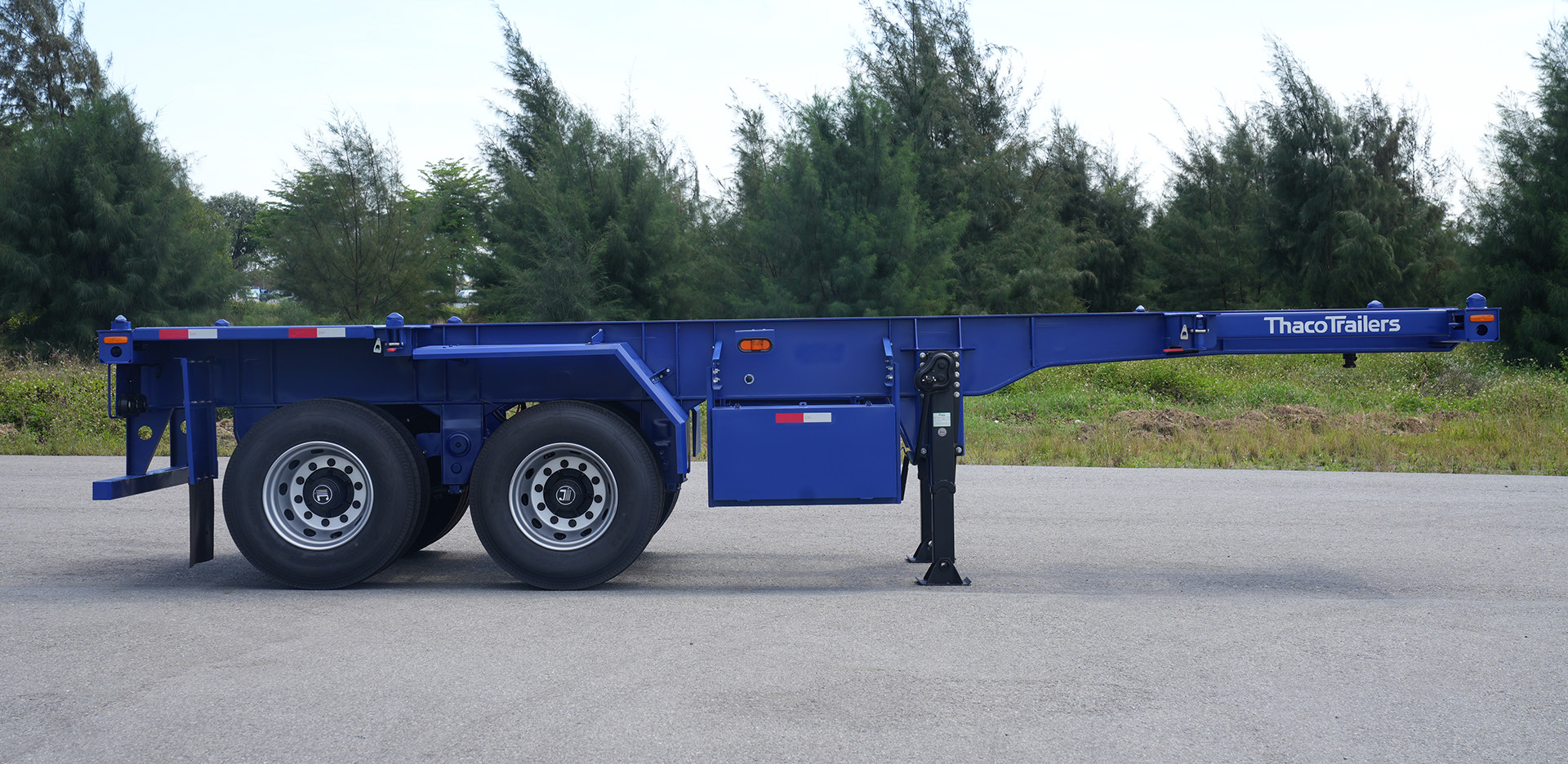

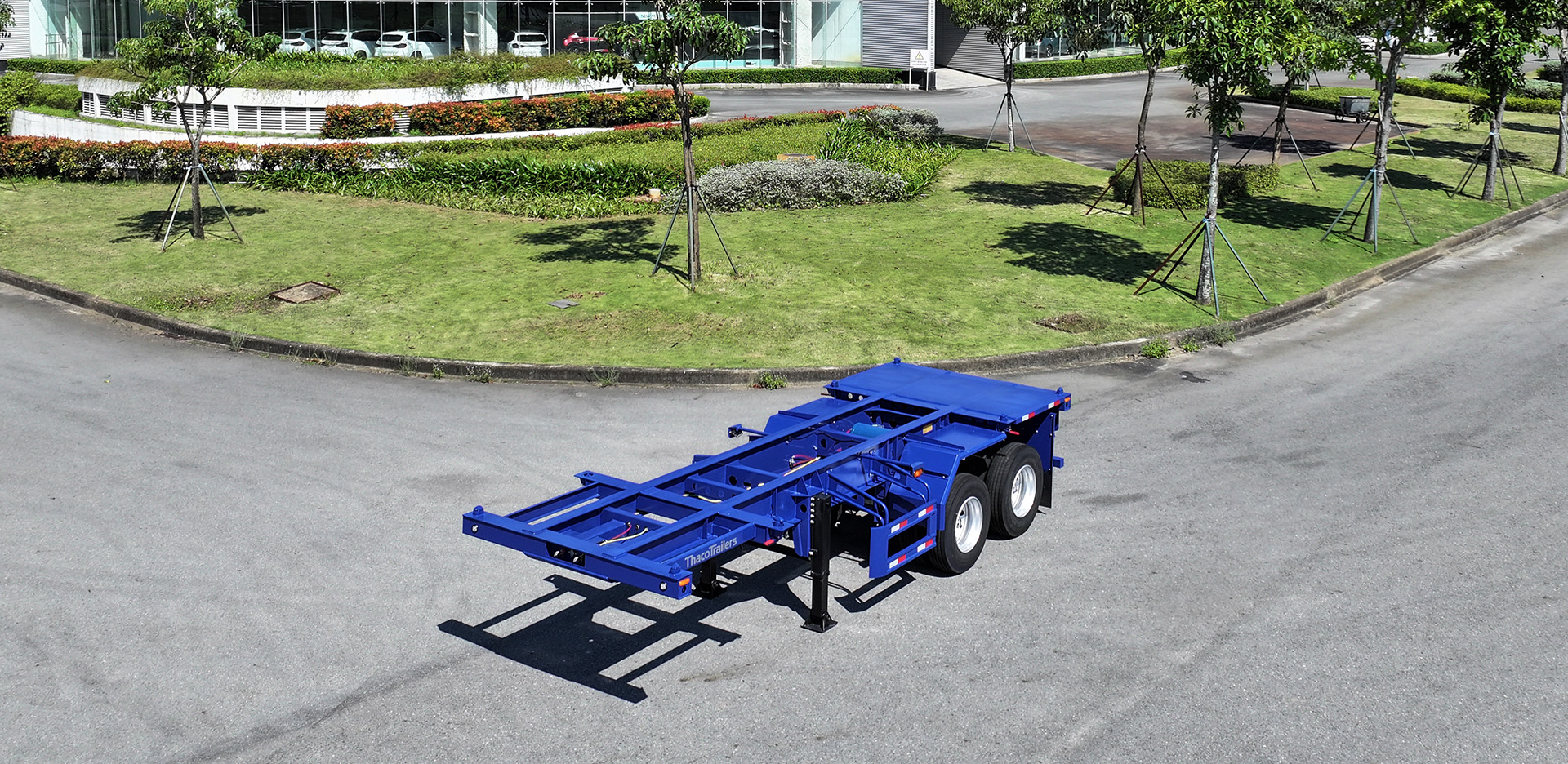

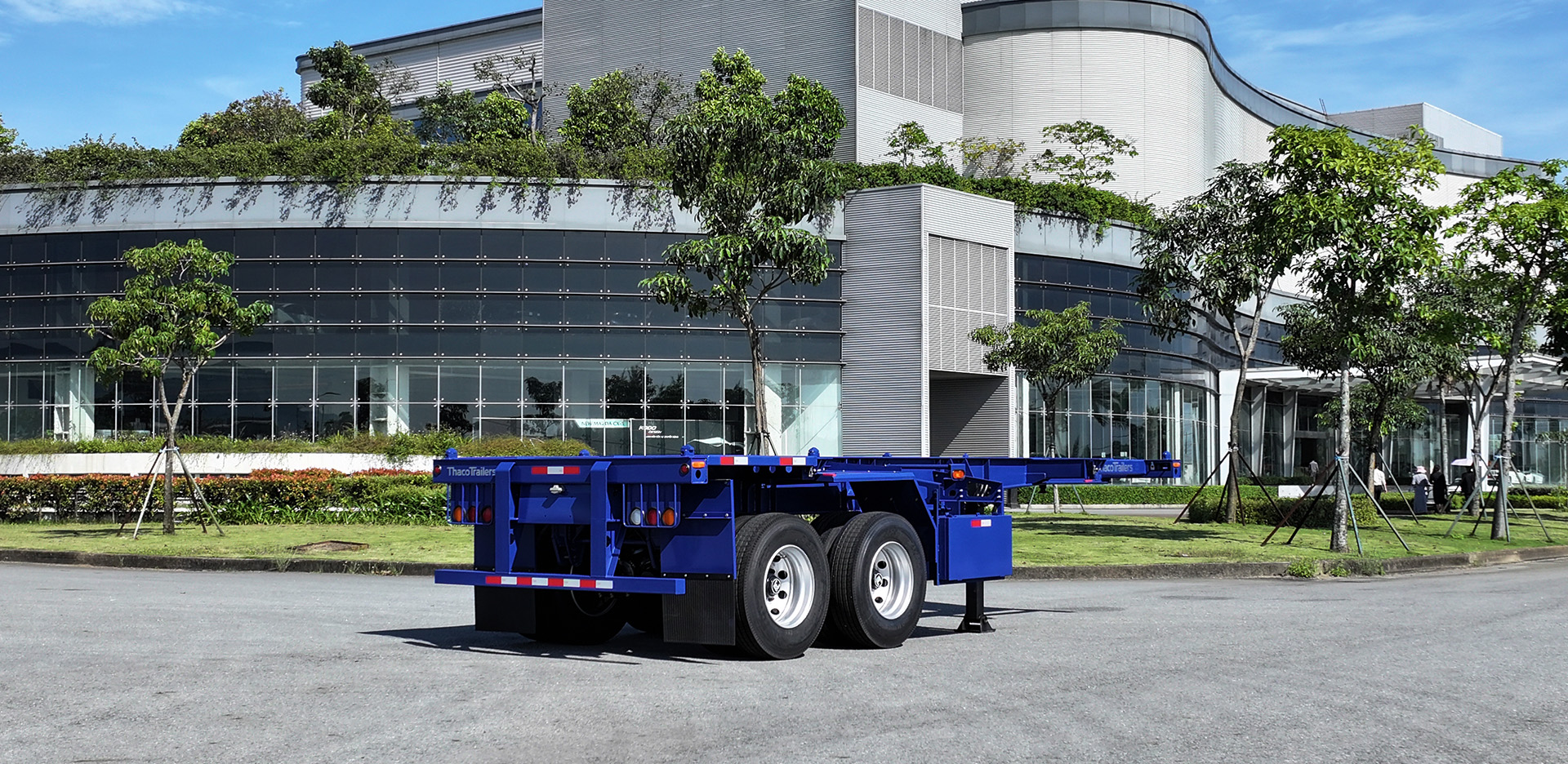

20’ Skeletal Tandem, 8 Twist Locks
2-axle design with a payload capacity of 30,9 tons. Suitable for flexibly transport of 20ft containers.
2″ (ø50), Bolt Connection
Color on request
- Specifications
- Warranty Policy
| Overall Dimensions | 7,580 x 2,480 x 1,530 mm |
| Wheelbase | 4,530 + 1,310 mm |
| Tare Weight | 3.700 kg |
| Maximum Payload / Permissible Payload | 30,935 / 30,655 kg |
| Maximum Gross Weight / Permissible Gross Weight | 34,635 / 34,355 kg |
| Main Beam | Welded Beam 456/140 mm |
| Axle | Jingsheng 13-ton |
| Kingpin | 2” (ø50), Bolt Connection |

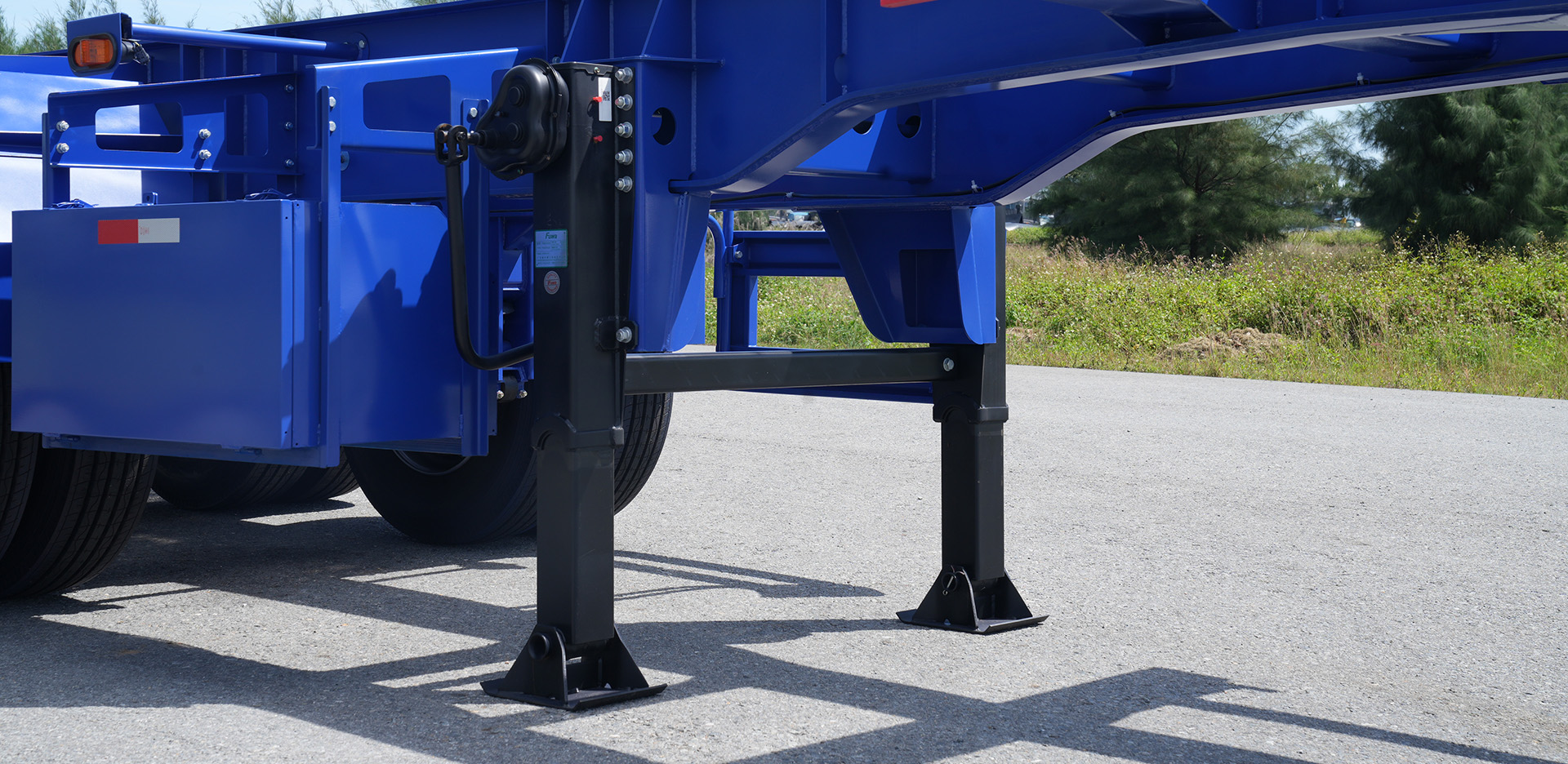

| Landing Gear | Fuwa 28-ton |
| Suspension | Leaf Spring, Jingsheng Shock Absorber, 4-leaf Spring (90×20 mm) |

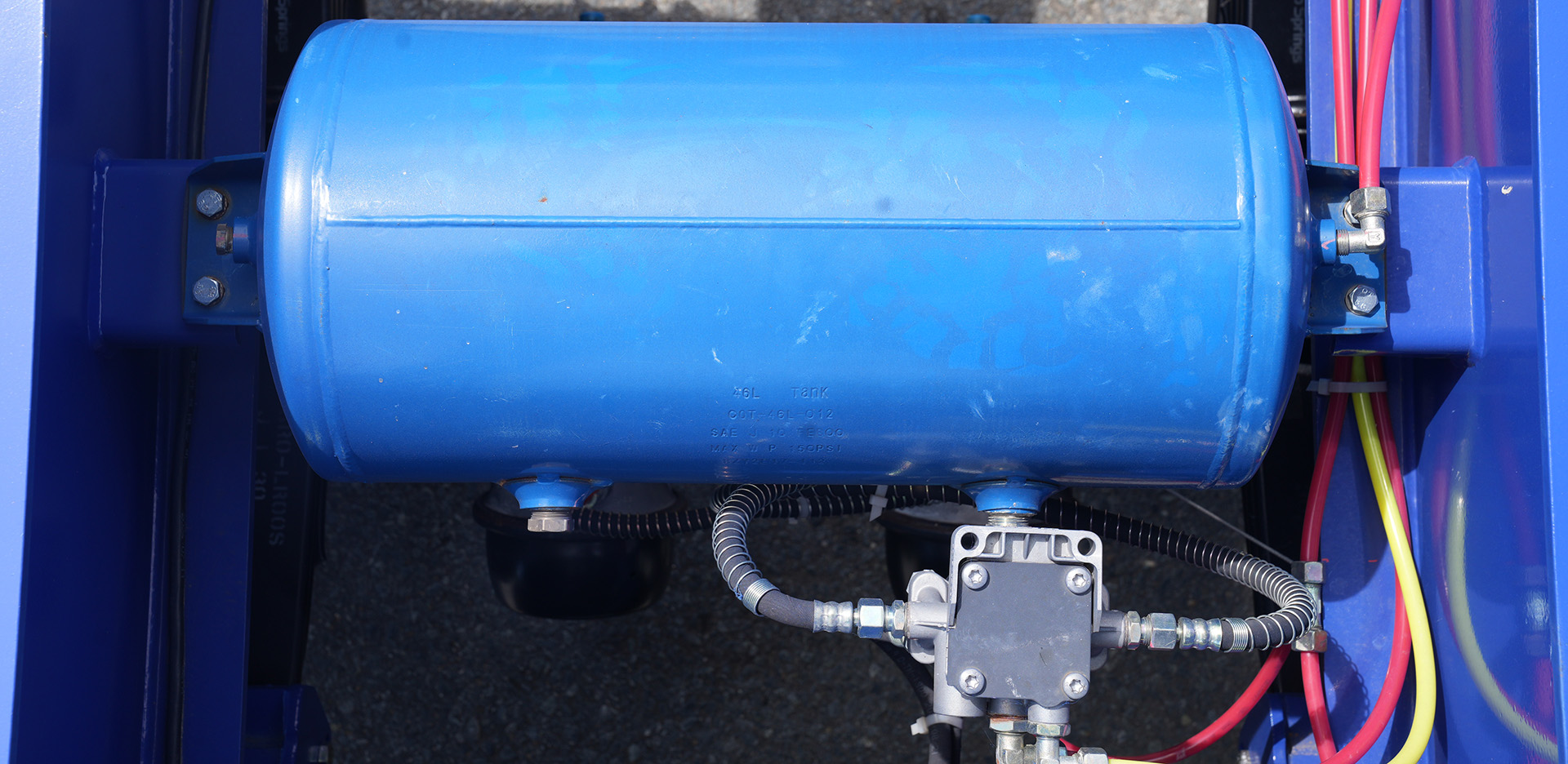

| Brake Valve | Wabco |

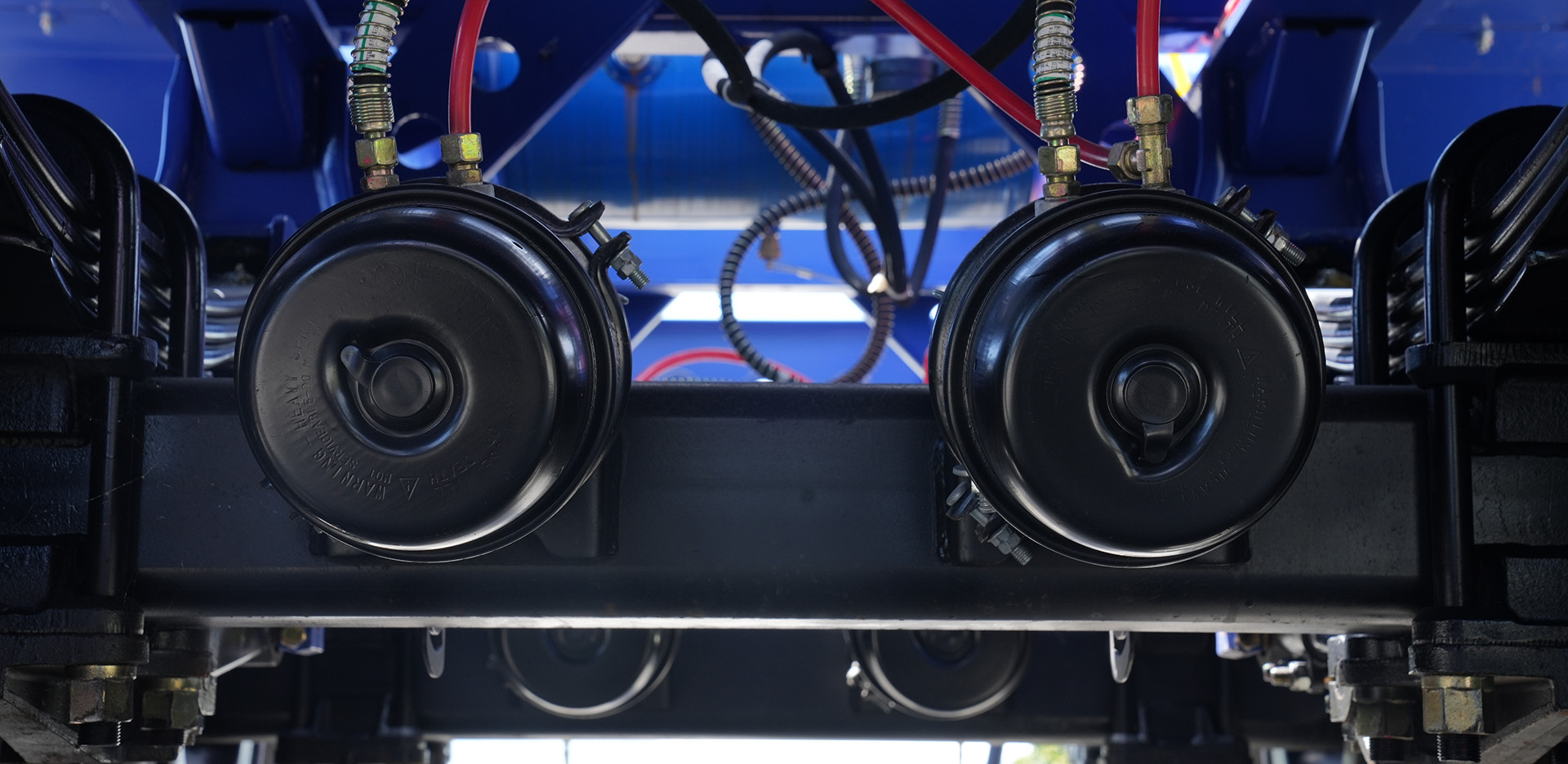

| Brake System | Locke 2-axle |
| Electrical System | 10–30V (compatible with all types of tractors) |

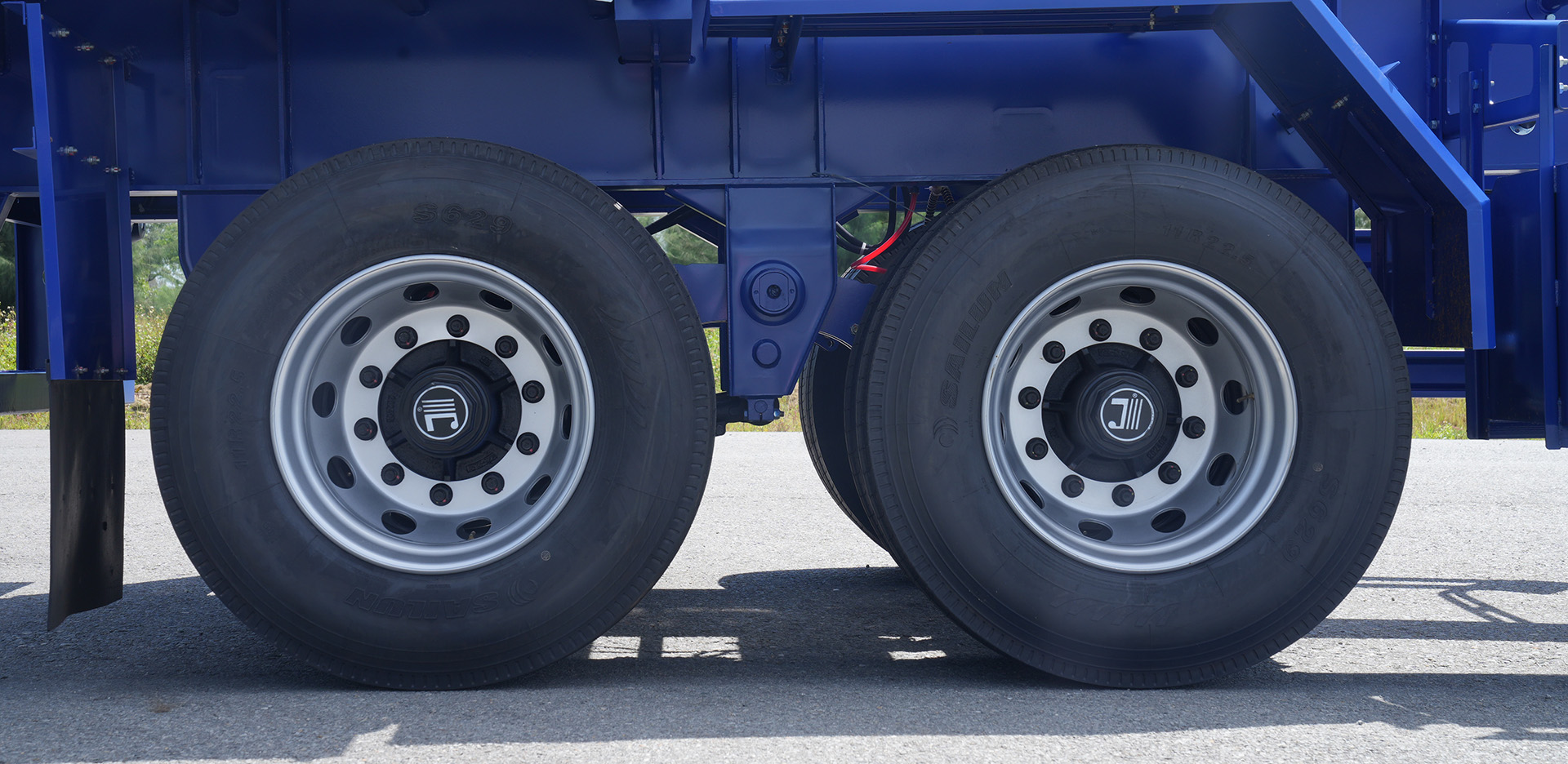

| Tire Size | 11R22.5 |
| Painting Technology |
|
| Color (upon request) | Blue (standard color) |
| No. | Part Name | Manufacturers Name | Time | Warranty Information |
| 1 | Frame | Thaco Trailers | 5 Years | THACO INDUSTRIES TRAILERS AND HEAVY STEEL STRUCTURES MANUFACTURING LIMITED LIABILITY COMPANY Add: Chu Lai IZ., Nui Thanh Commune, Da Nang City, Vietnam Office: (+84) 2353.565.327 Website: https://thacotrailers.com/ |
| 2 | Paint(ED + Top coat) | PPG | Painting: 7 Years |
