Tri-axle Drop Deck
The detachable rear ladder design allows flexible container arrangement based on customer needs. The product is suitable for transporting construction motorcycles, heavy cargo, 20ft and 40ft containers, as well as FR containers.
Color as requested.
Color on request
- Specifications
- Warranty Policy
| Overall Dimensions | 16,740 x 3,330 x 3,090 mm |
| Wheelbase | 12,110 + 1,220 + 1,220 mm |
| Tare Weight | 13,000 kg |
| Payload Capacity / Allowable Cargo Weight | 43,000 kg |
| Gross Vehicle Weight Rating (GVWR) | 56,000 kg |
| Main Beam | Welded Beam 520/180 mm |
| Axle | Fuwa 13-ton |
| Kingpin | 3.5″ (ø90), Bolt Connection |
| Landing Gear | Fuwa 28-ton |
| Twist Locks | 8 pcs |
| Suspension | Leaf Spring, Fuwa Shock Absorber, 10-leaf Spring (90×13 mm) |
| Brake Valve | Wabco |
| Brake System | Locke 3-axle |
| Electrical System | 10–30V (compatible with all types of tractors) |
| Tire Size | 285/70R19.5 |
| Painting Technology |
|
| Color (upon request) | Blue (standard color) |
| No. | Part Name | Manufacturers Name | Time | Warranty Information |
| 1 | Frame | Thaco Trailers | 5 Years | THACO INDUSTRIES TRAILERS AND HEAVY STEEL STRUCTURES MANUFACTURING LIMITED LIABILITY COMPANY Add: Chu Lai IZ., Nui Thanh Commune, Da Nang City, Vietnam Office: (+84) 2353.565.327 Website: https://thacotrailers.com/ |
| 2 | Paint(ED + Top coat) | PPG | Painting: 7 Years |
Other Products
Quad-axle Drop Deck
Car-Carrier
40’ Flatbed Tridem 12 Twist Locks
40′ Flatbed Tridem, 8 Twist Locks, 33.1 Tons
45′ Flatbed Tridem 10 Twist Locks
Dolly Tandem

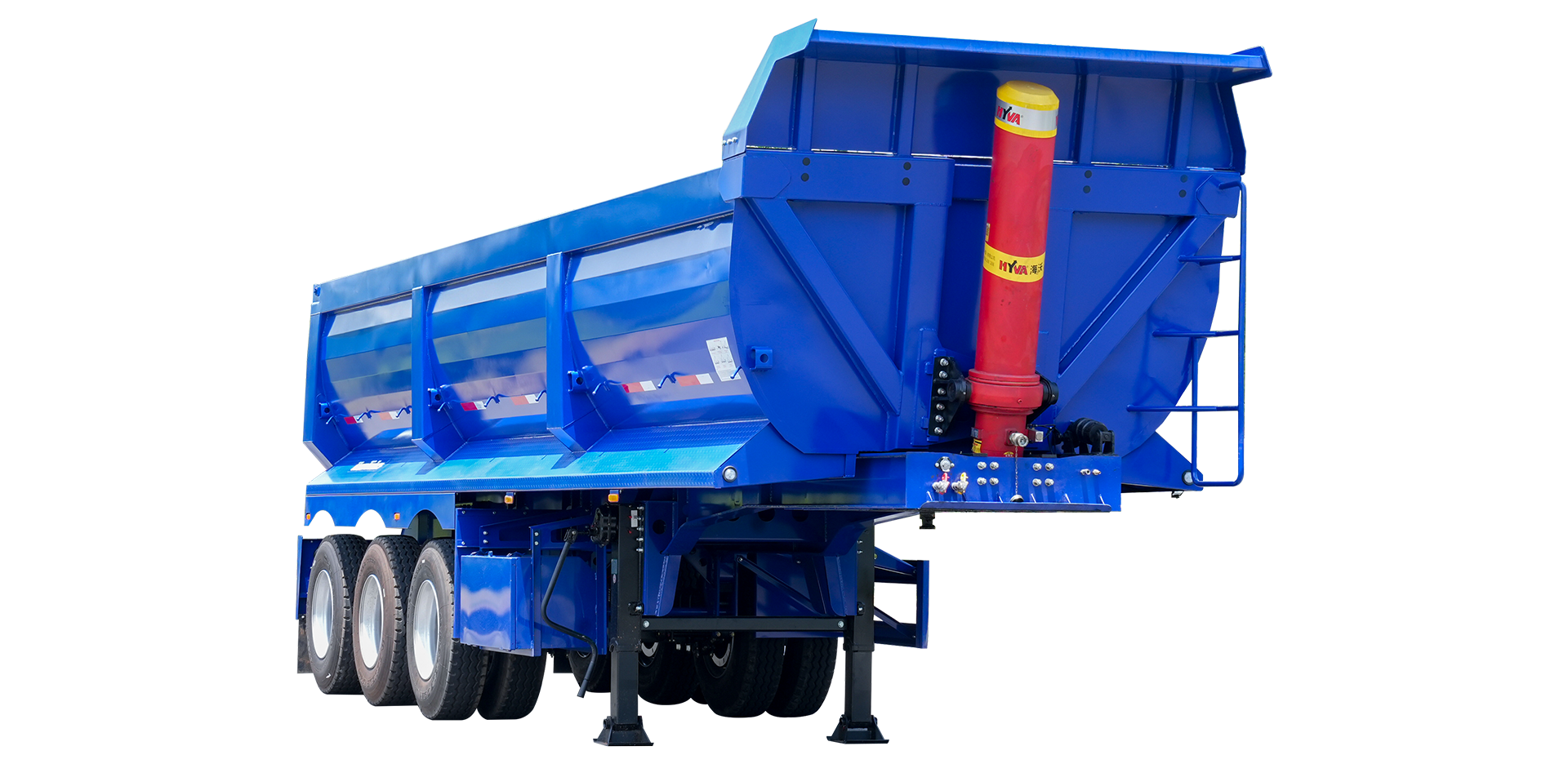

Lightweight Dump (HYVA)

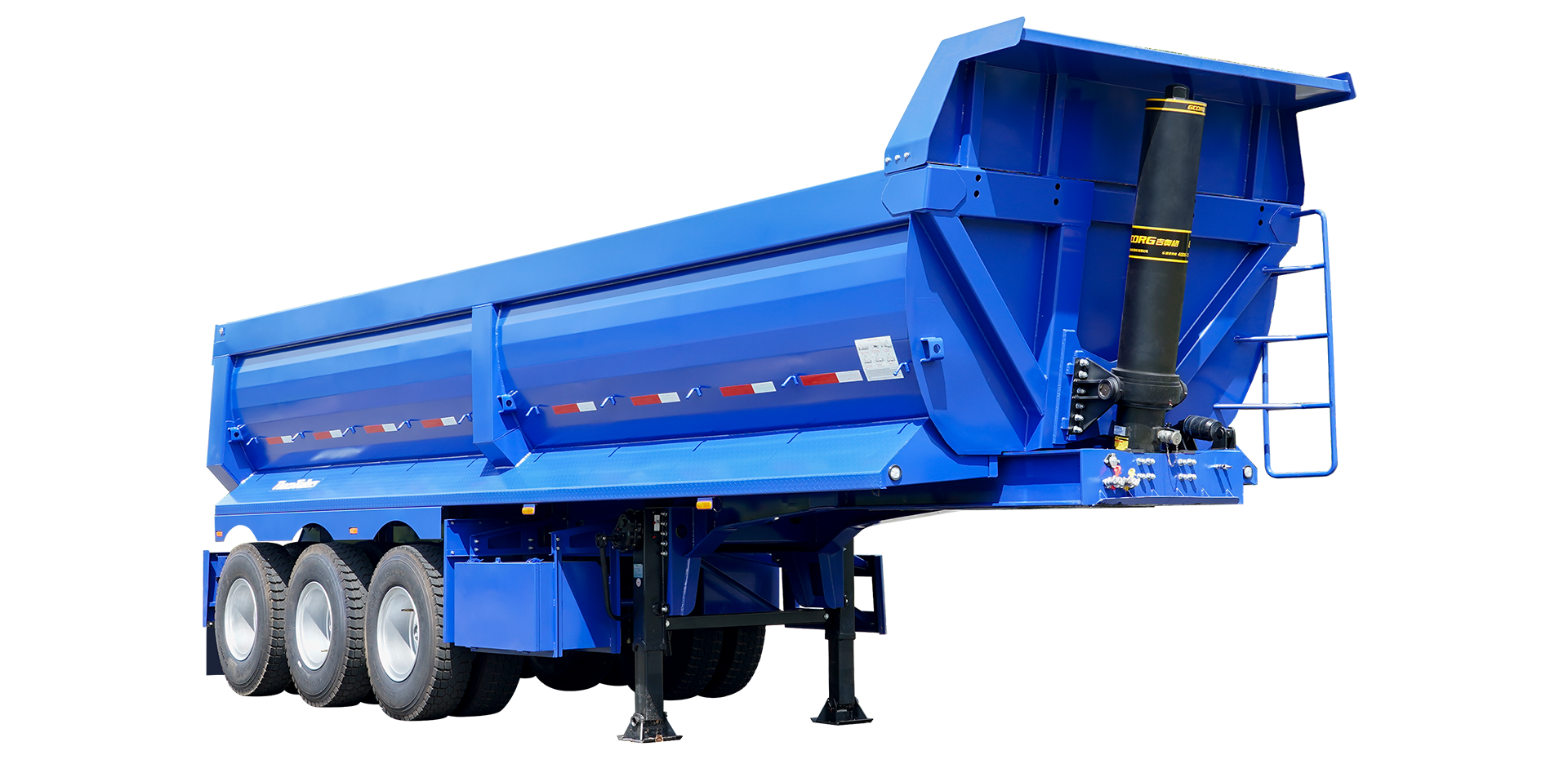

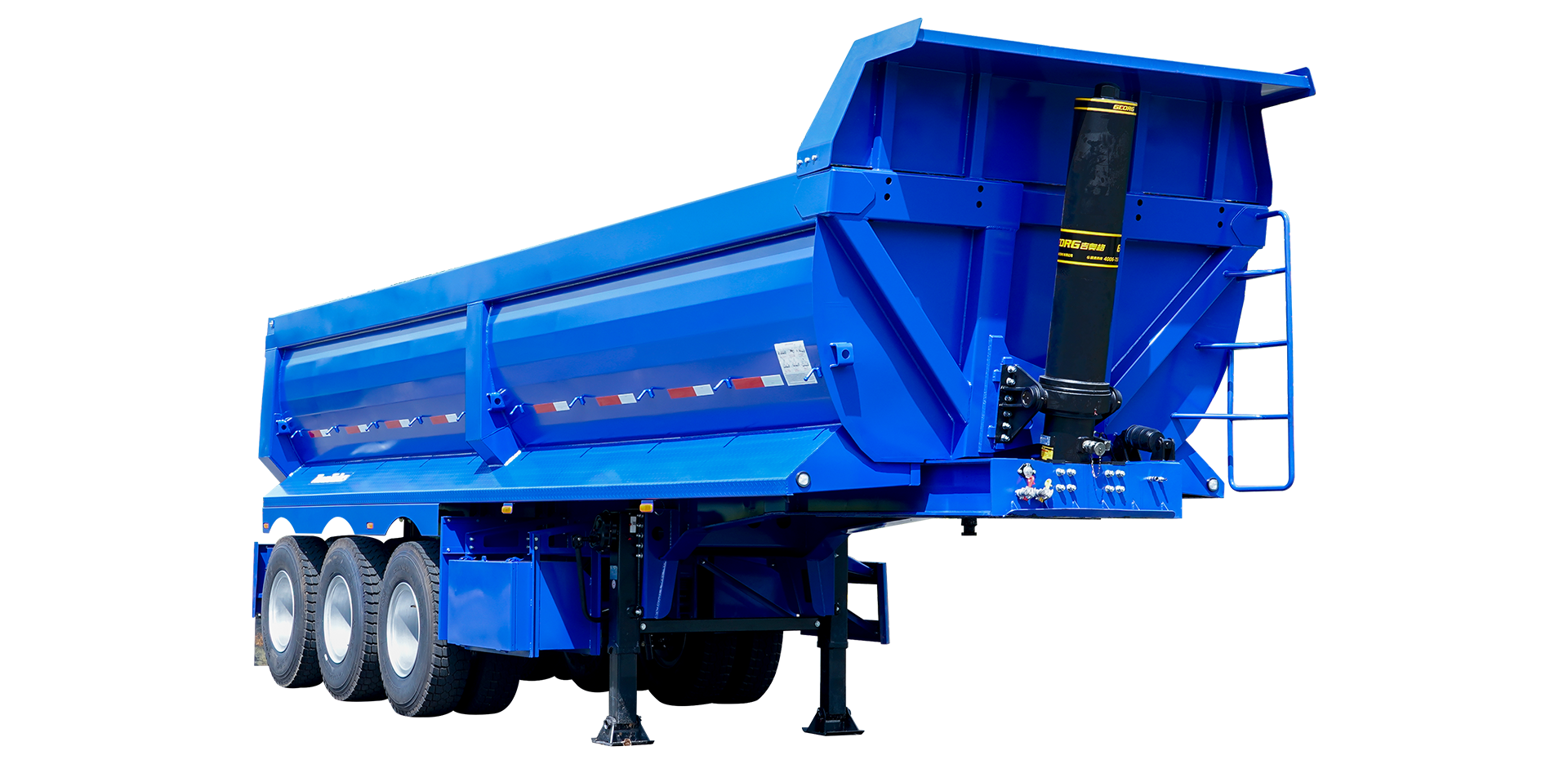

Heavyweight Dump (GEORG)
