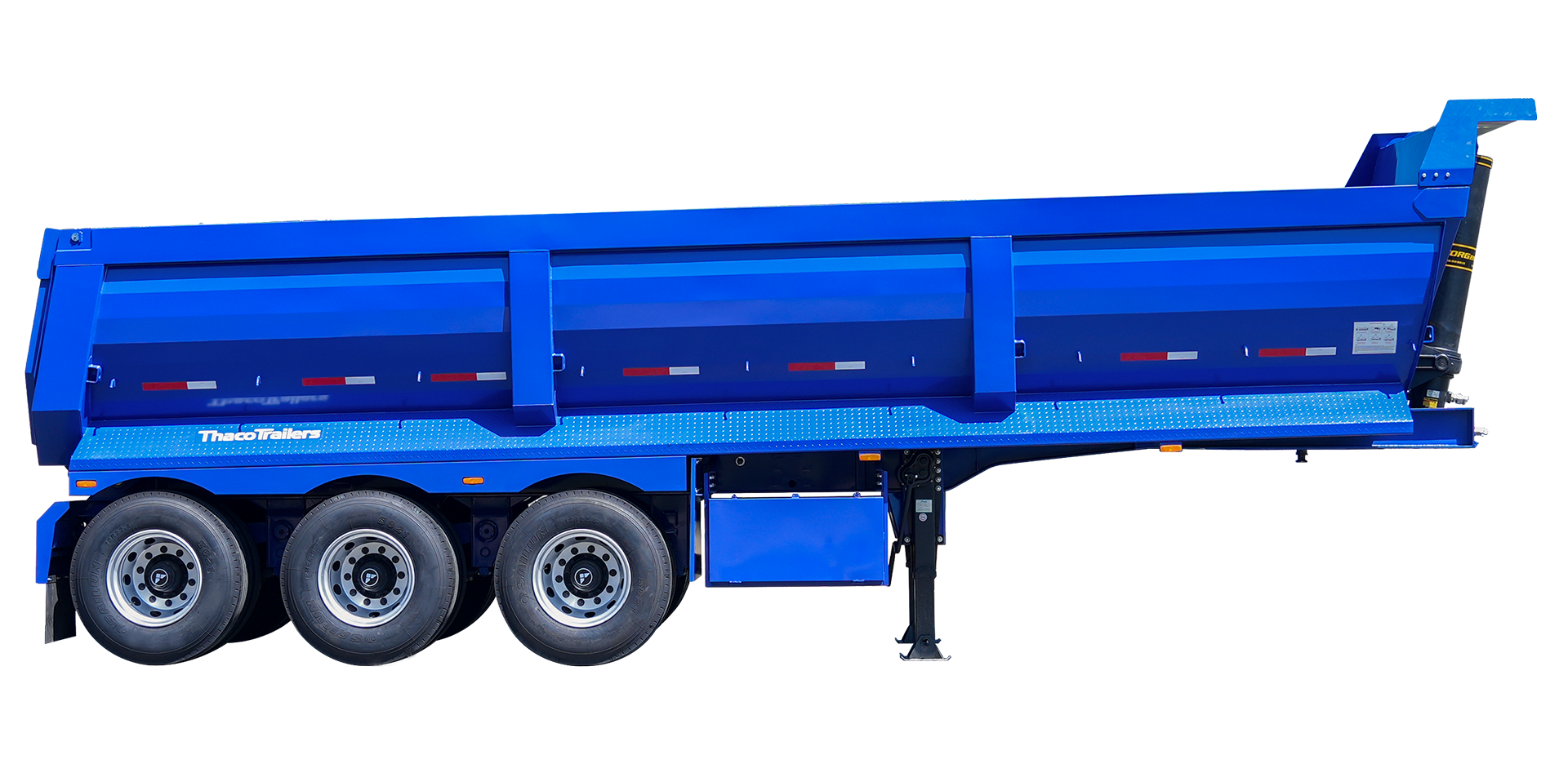

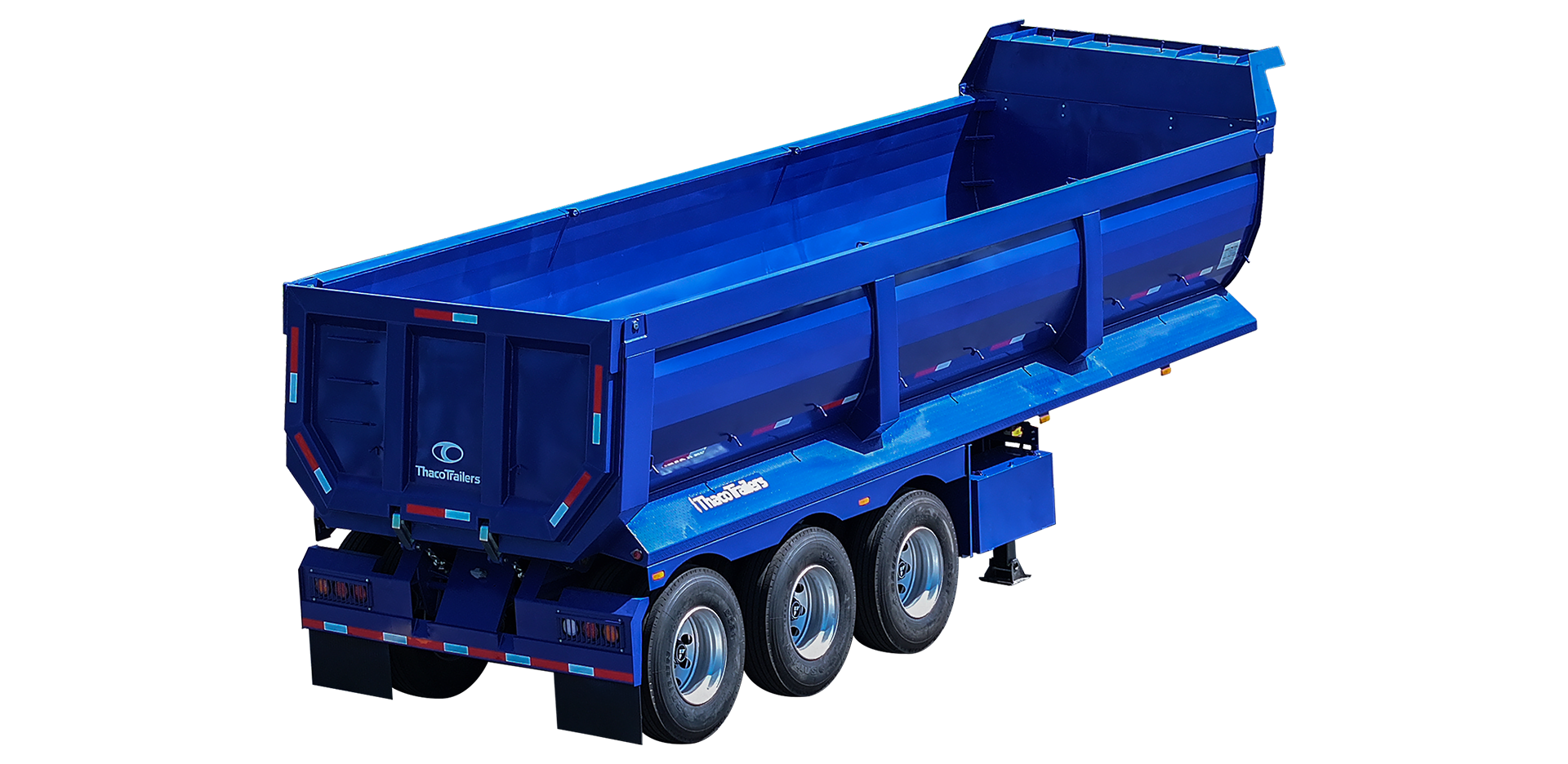

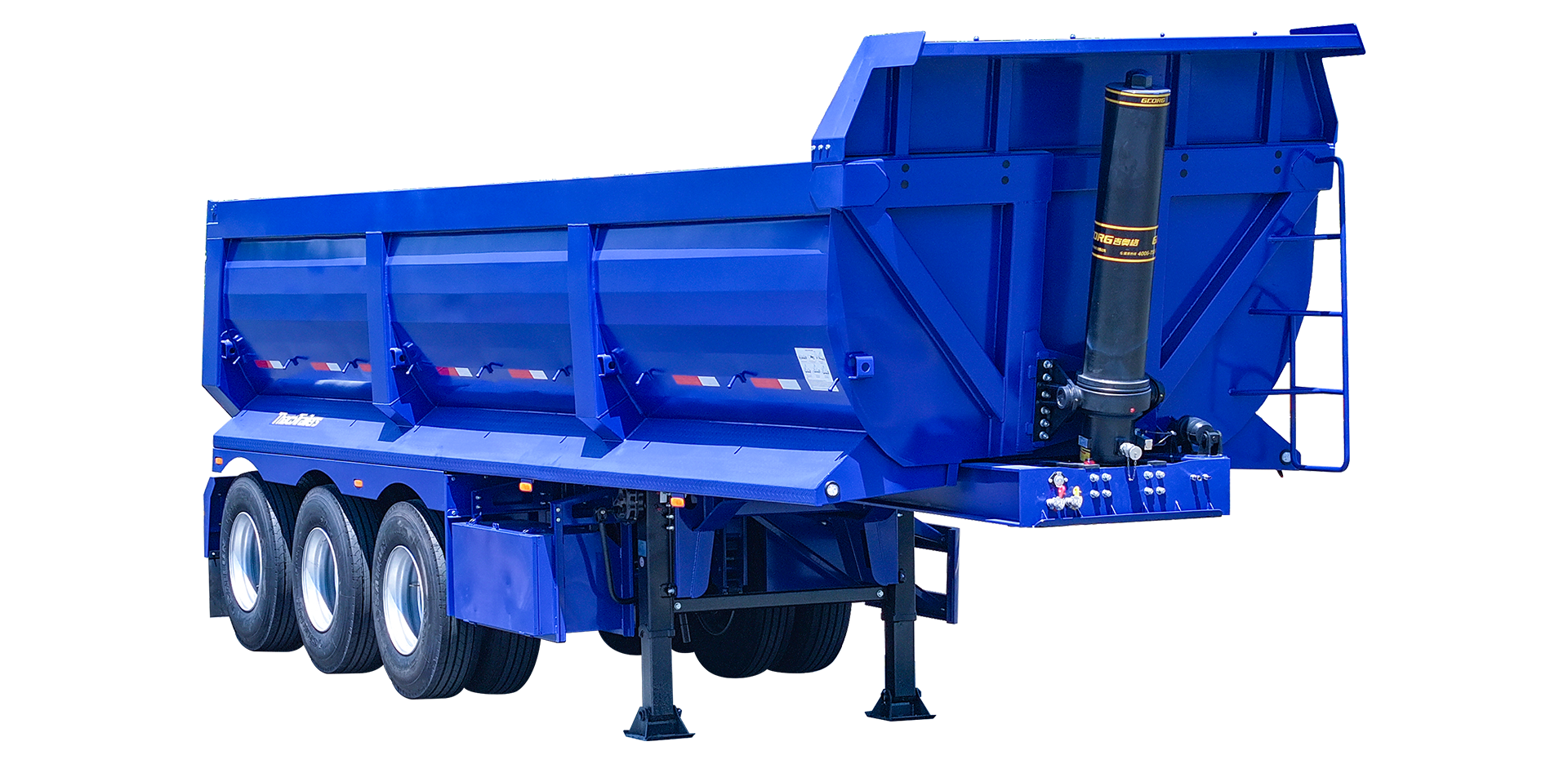

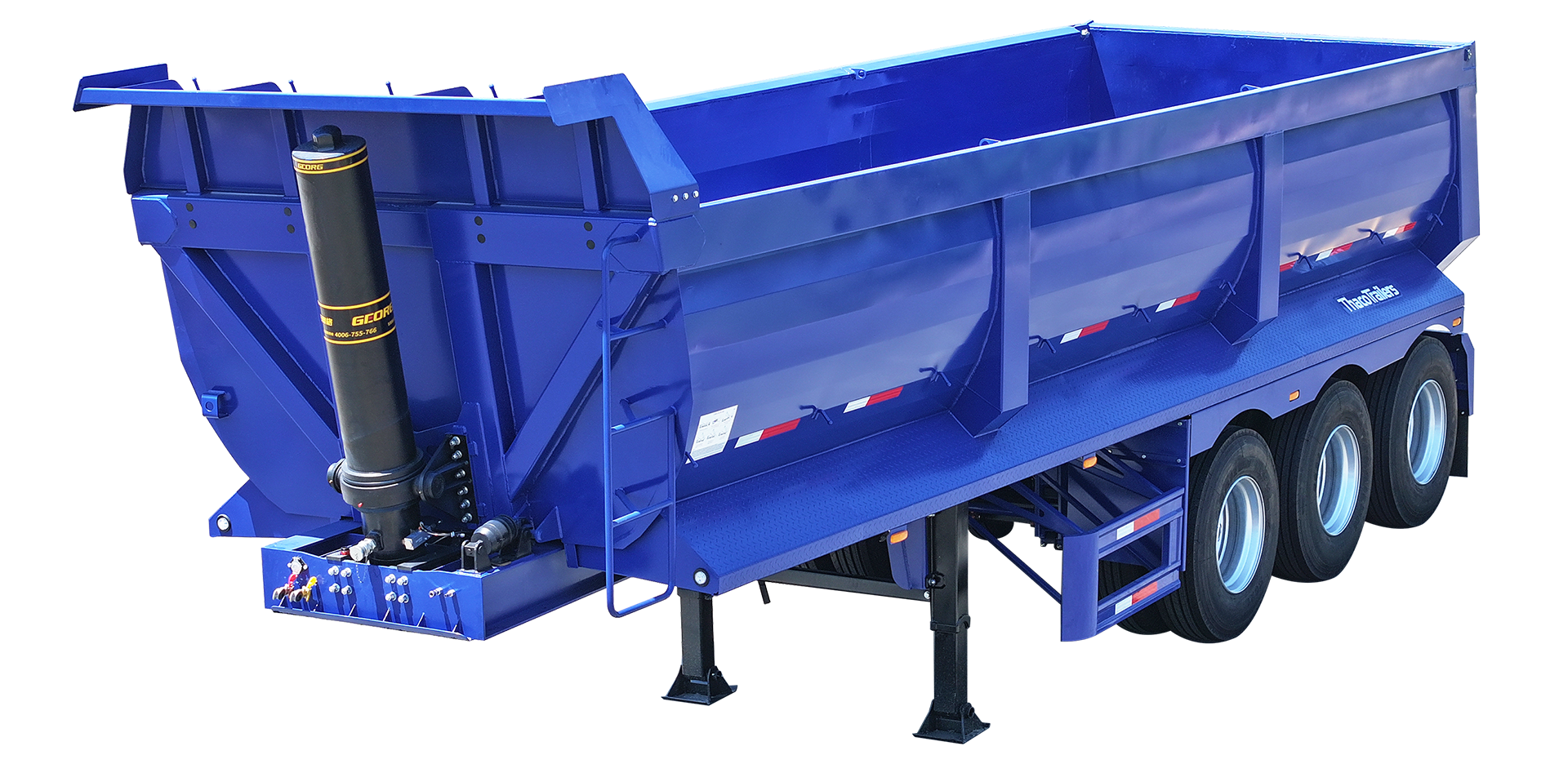

Lightweight Dump (GEORG)

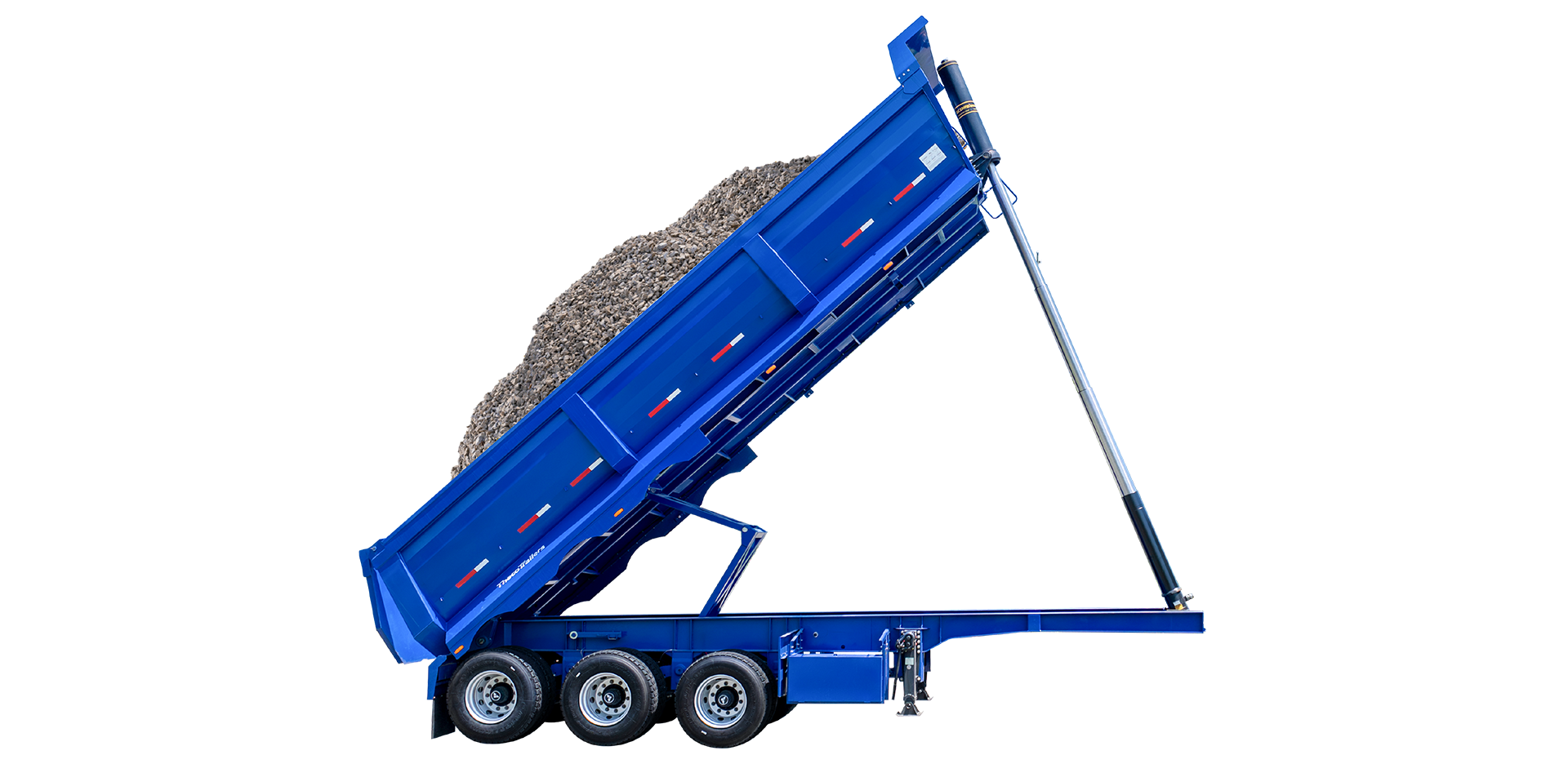

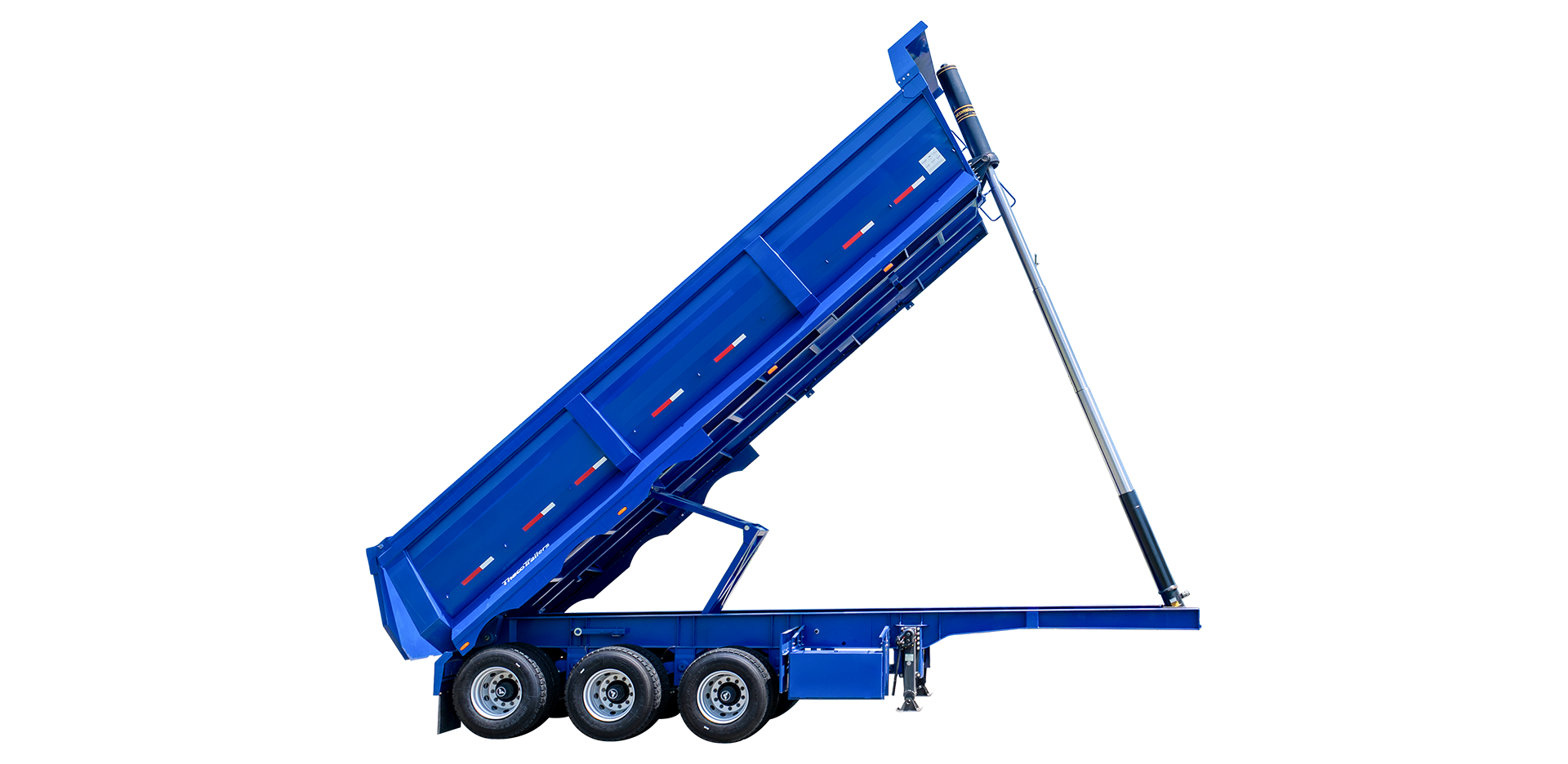

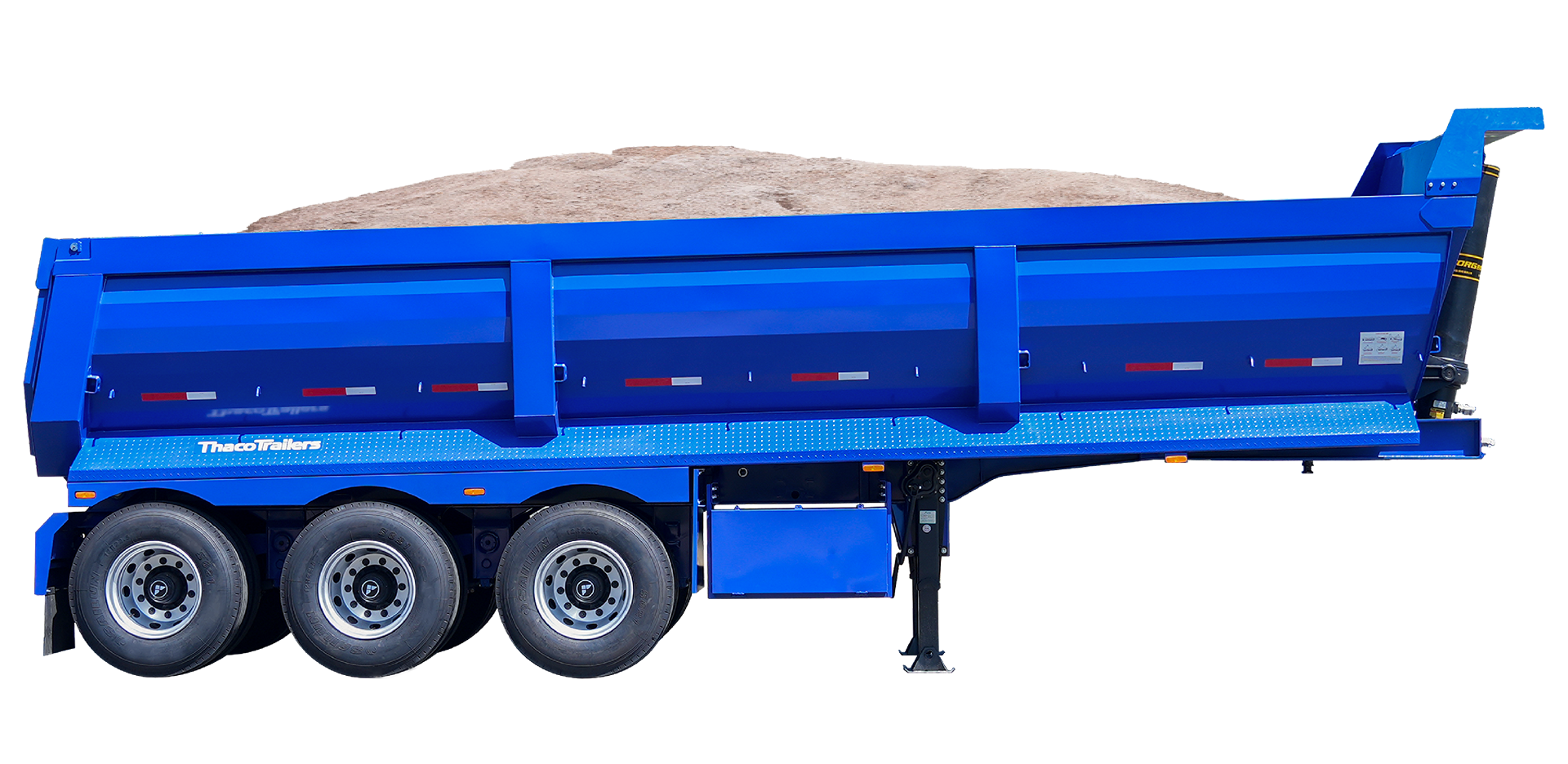

The robust beam frame structure and a cargo volume of up to 25 m³ integrated with the GEORG hydraulic system provide powerful self-unloading capability through a strong lifting mechanism. The product is suitable for transporting various bulk goods, construction materials, and agricultural products.
Color on request
-
Specifications
- Warranty Policy
| Overall Dimensions | 9,300 x 2,500 x 3,400 mm |
| Wheelbase | 4,550 + 1,310 + 1,310 mm |
| Internal Cargo Dimensions | 8,475/8,475 x 2,440/342 x 1,250 mm |
| Tare Weight | 8,900 kg |
| Maximum Design Payload / Allowable Cargo Weight | 31,100 / 28,010 kg |
| Gross Vehicle Weight Rating (GVWR)/Maximum Allowable Gross Vehicle Weight | 40,000 / 36,910 kg |
| Cargo Volume | 24.5 m³ |
| Main Beam | Welded Beam 500/140 mm |
| Axle | Fuwa 13-ton |
| Kingpin | 2″ (ø50), Bolt Connection |

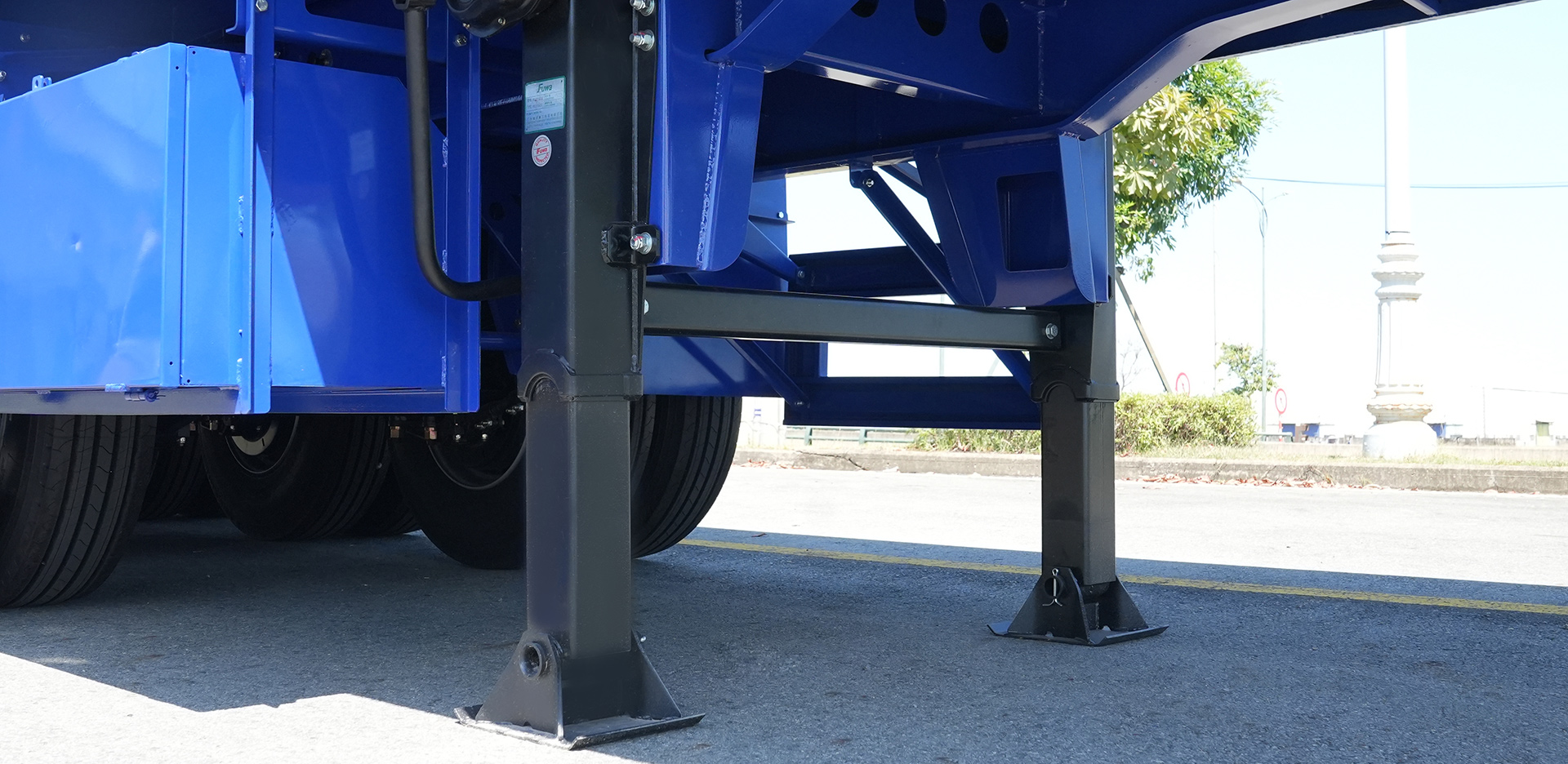

| Landing Gear | Fuwa 28-ton |

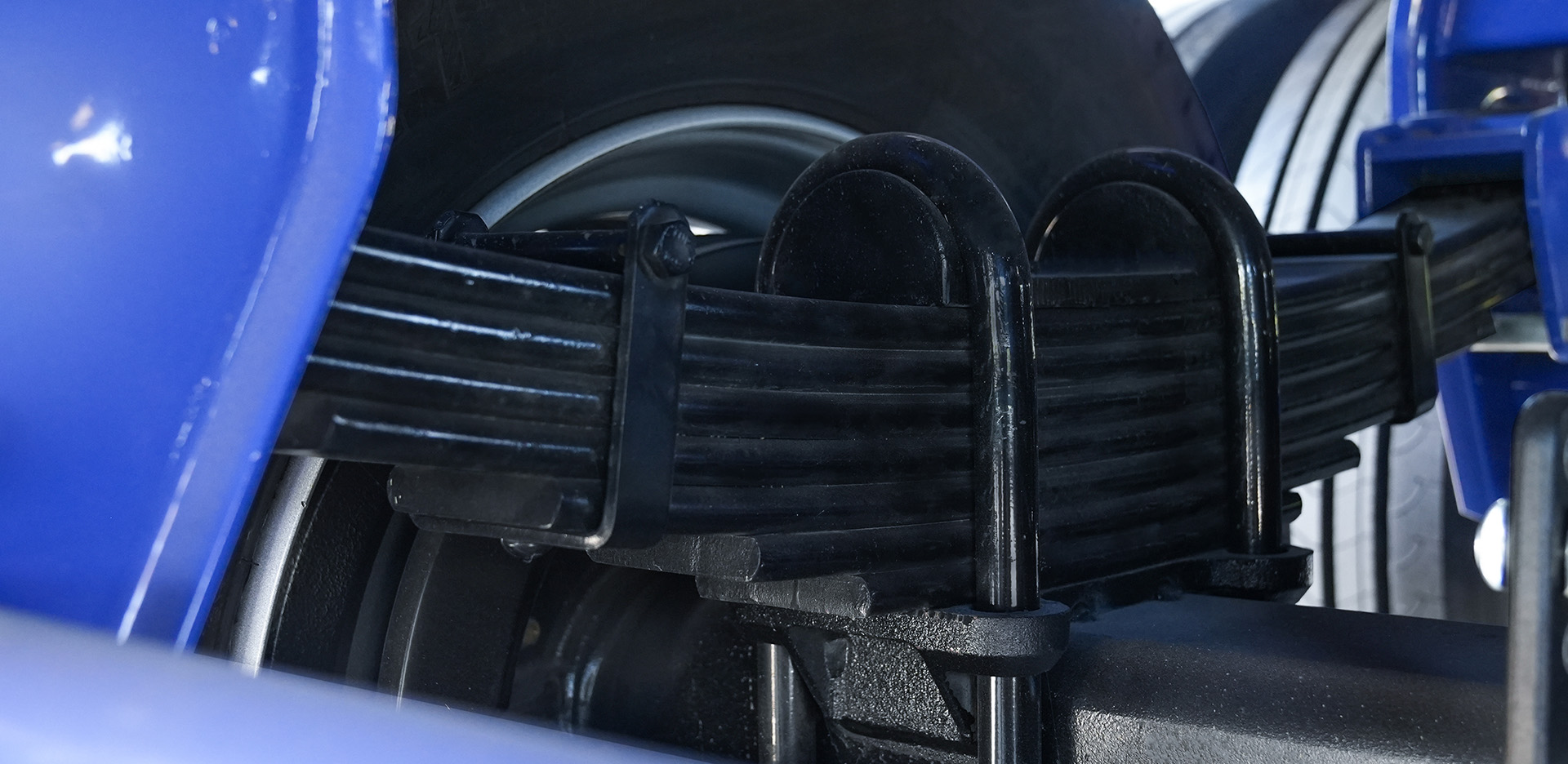

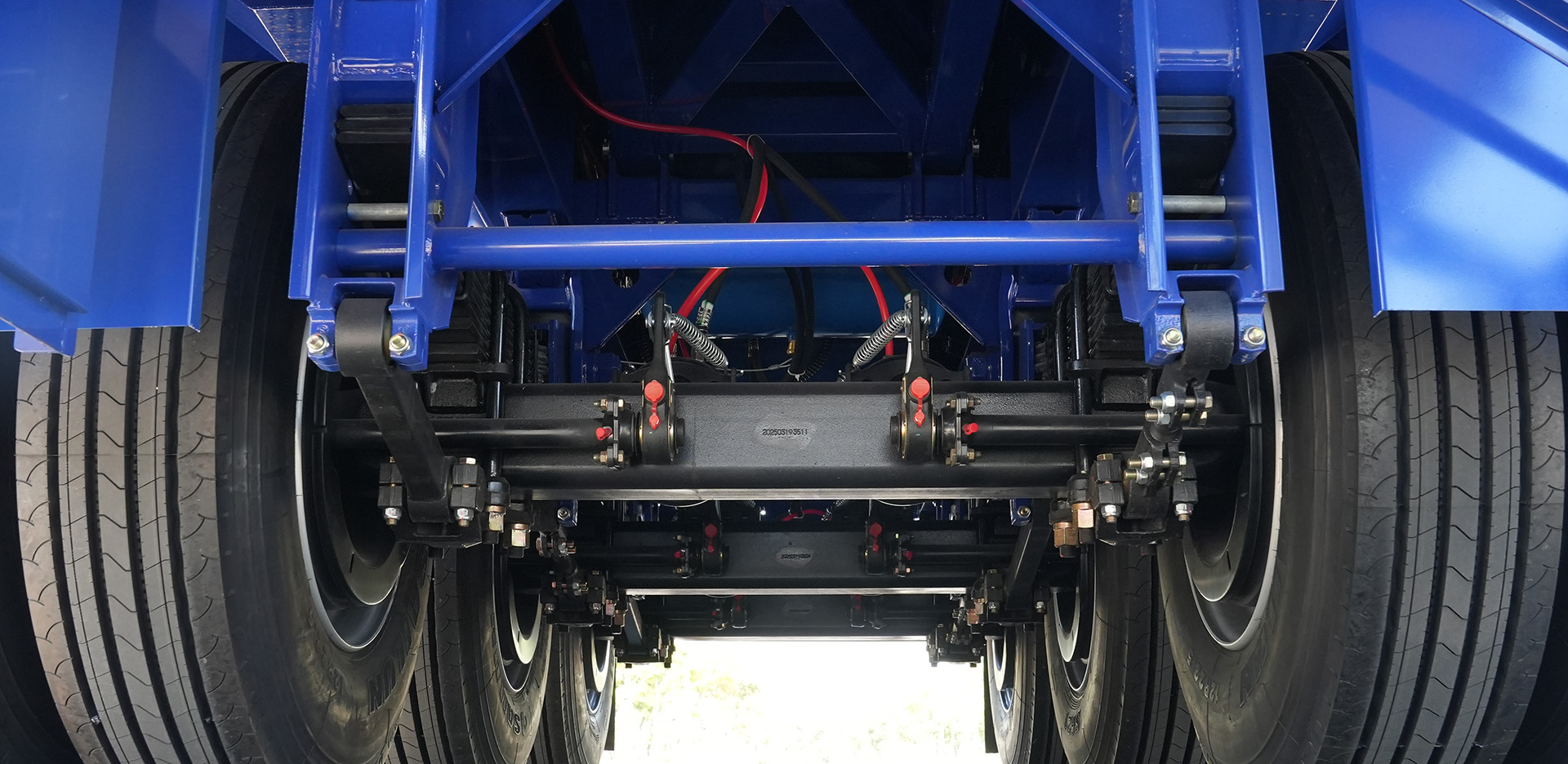

| Suspension | Fuwa Shock Absorber, 9-leaf Spring (90×16 mm) |
| Brake Valve | Wabco |

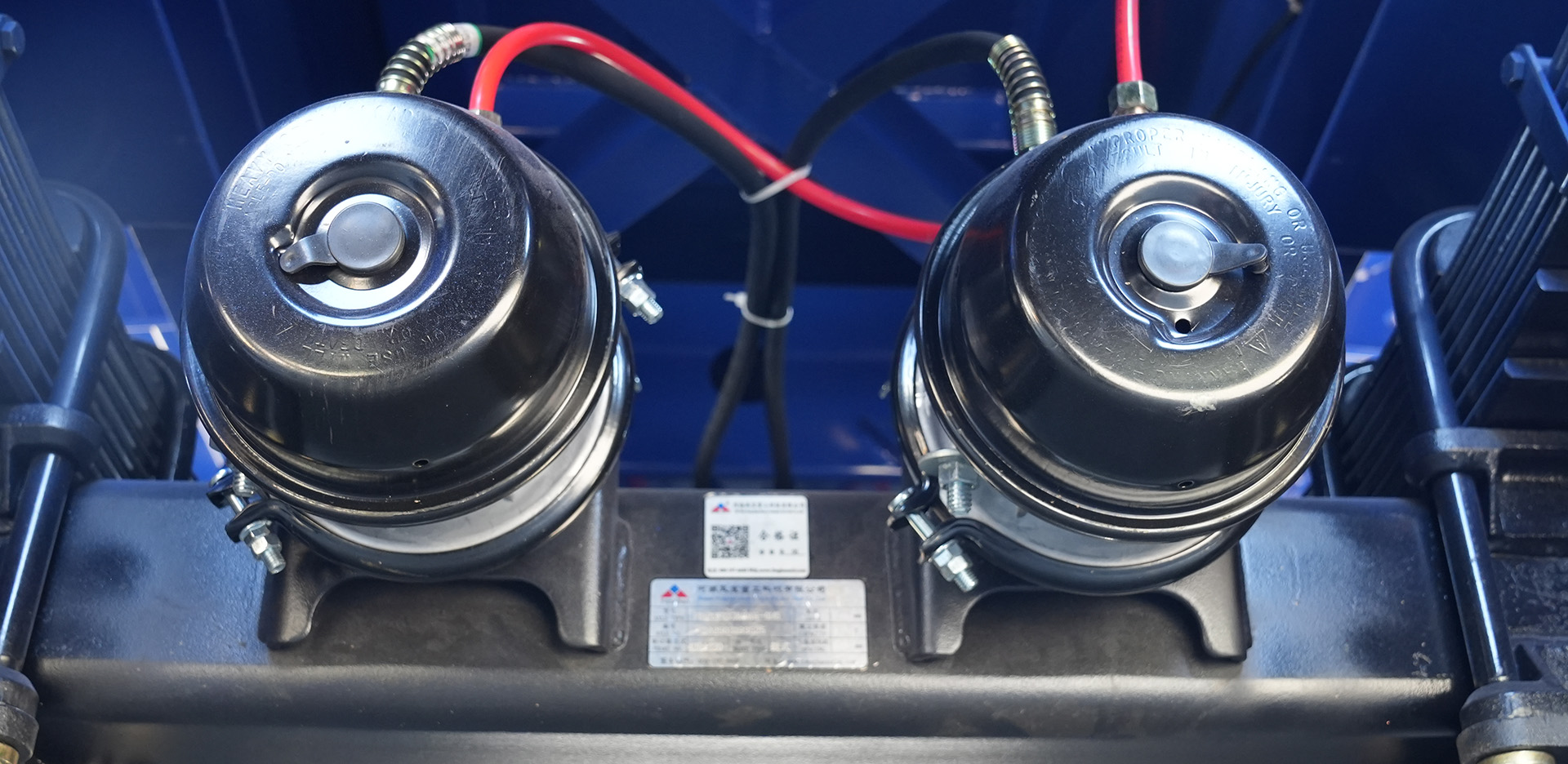

| Brake System | Locke 3-axle |
| Electrical System | 10–30V |

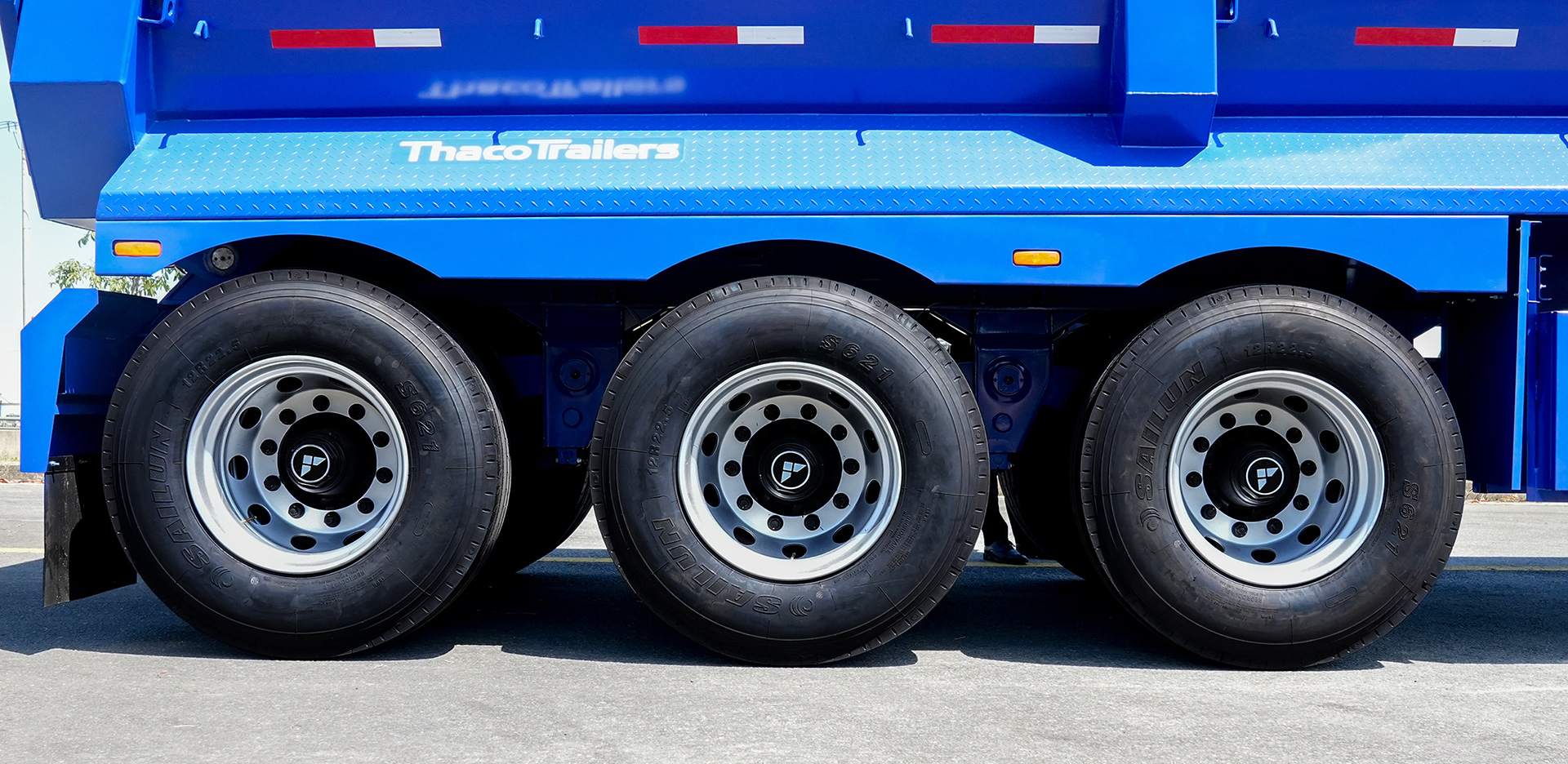

| Tire Size | 12.00R20 |

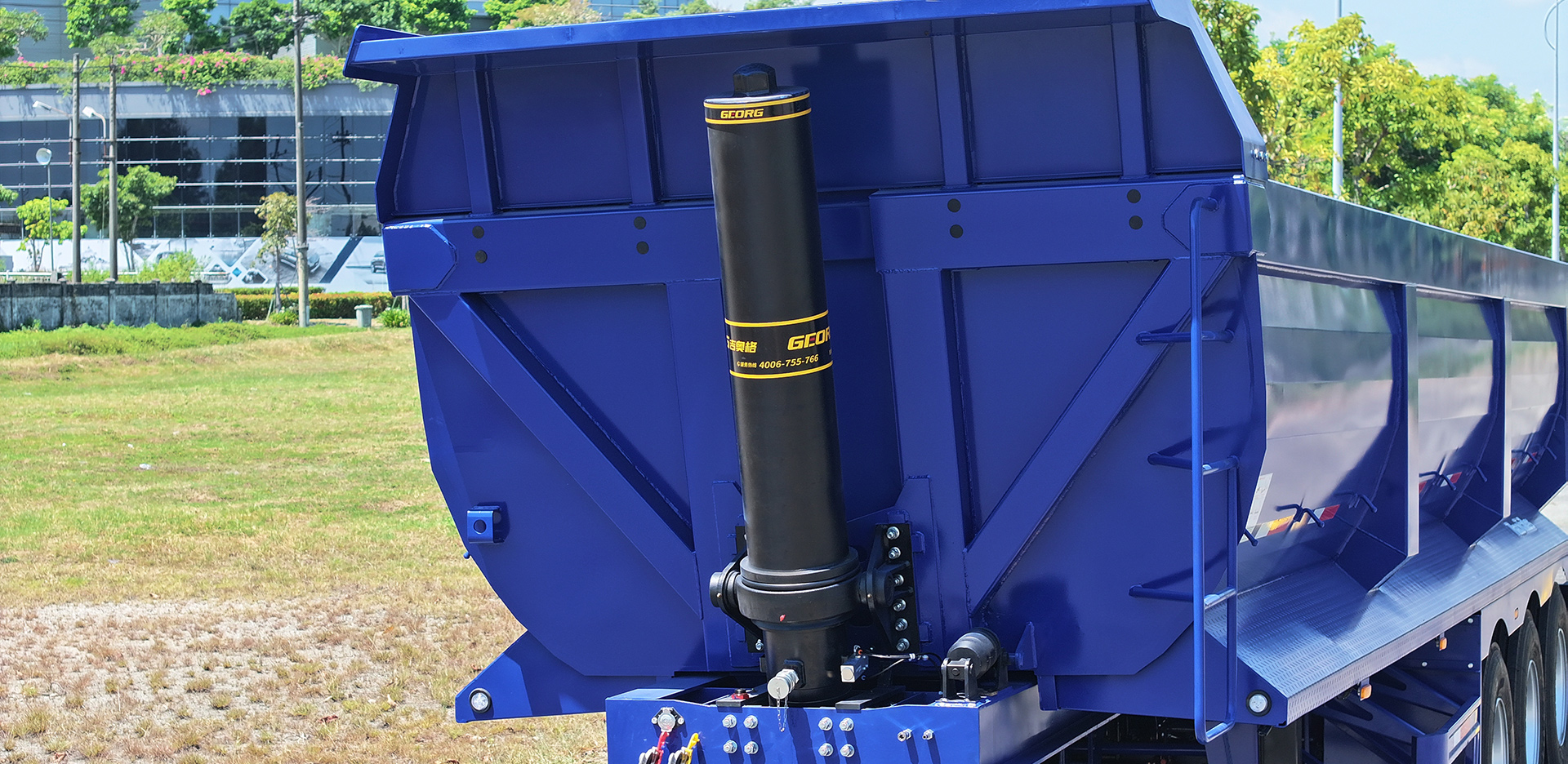

| Hydraulic System | HYVA FC A202-5-06695-009-K0343 |
| Painting Technology | Surface Cleaning by Shot Blasting SA 2.5, Primer, Finish Paint |
| Color (upon request) | Standard color |
| No. | Part Name | Manufacturers Name | Time | Warranty Information |
| 1 | Frame | Thaco Trailers | 36 Months | THACO INDUSTRIES TRAILERS AND HEAVY STEEL STRUCTURES MANUFACTURING LIMITED LIABILITY COMPANY Add: Chu Lai IZ., Nui Thanh Commune, Da Nang City, Vietnam Office: (+84) 2353.565.327 Website: https://thacotrailers.com/ |
| 2 | Paint(ED + Top coat) | PPG | 36 Months |
